ANSI Engine-Powered Rough Terrain Scissor Lift — 49 ft 3 in / 50 hp
ANSI-compliant engine-powered rough terrain scissor lift. 49 ft 3 in (15 m) maximum working height, 42 ft 8 in (13 m) platform height, 1,499 lbs rated load. 50 hp diesel engine at 2,700 rpm — double the 25 hp of the 39 ft XG3369RT-ANSI sibling to handle the larger scissor stack and 50 percent higher rated load. 15,983 lbs total weight on a 9 ft 4 in wheelbase, 40 percent grade ability, 10 in ground clearance, minimum turning radius 8 ft 2 in (inner) / 18 ft 4 in (outer wheel).

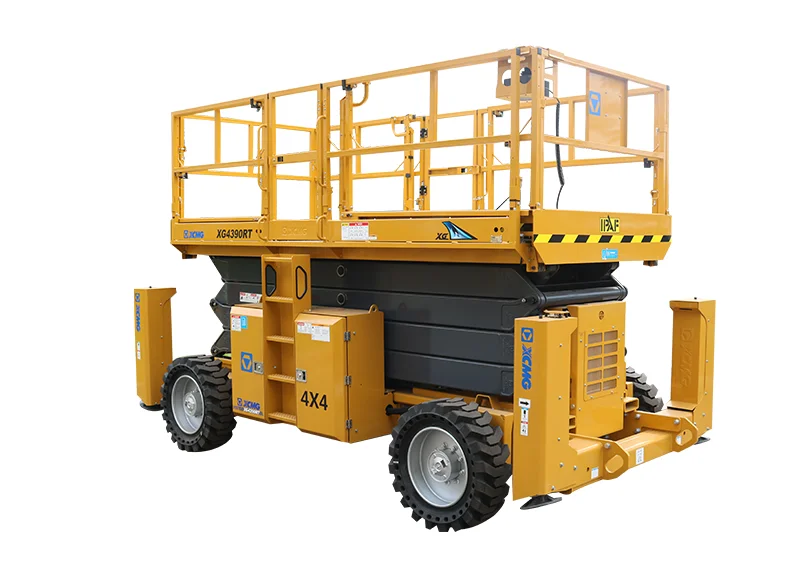

The XCMG XG4390RT-ANSI is an ANSI-compliant engine-powered rough terrain scissor lift with 49 ft 3 in (15 m) maximum working height, 42 ft 8 in (13 m) platform height, and 1,499 lbs rated load. Diesel drive on a 4-wheel rough terrain chassis — ANSI-certified for North American market sale and rental at the 49 ft class.
Powered by a 50 hp engine at 2,700 rpm — double the engine power of the 39 ft XG3369RT-ANSI sibling (25 hp) to handle the larger scissor stack and 50 percent higher rated load. Total weight is 15,983 lbs on a 9 ft 4 in wheelbase, ground clearance 10 in, 40 percent grade ability. Minimum turning radius is 8 ft 2 in (inner wheel) / 18 ft 4 in (outer wheel). 1,499 lbs rated load supports a three-person crew with tools and materials at full platform height. Choose XG4390RT-ANSI when project reach demands 49 ft (15 m) working height with ANSI certification and the heavier chassis fits site transport constraints. Same chassis platform as the 59 ft XG5390RT-ANSI sibling — only the scissor stack differs. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG4390RT-ANSI that fit it to ANSI-compliant 49 ft engine-powered rough terrain scissor lift work: ANSI certification, 50 hp engine, shared chassis with 59 ft sibling, and 1,499 lbs rated load.
ANSI-certified configuration for U.S. and Canadian market sale and rental. Required where local rules mandate ANSI-approved aerial platforms (most U.S. construction, infrastructure, and rental fleet operators). ANSI variant of XCMG's 49 ft engine-powered RT scissor lift platform.
49 ft 3 in (15 m) maximum working height, 42 ft 8 in (13 m) platform height, 1,499 lbs rated load — 50 percent higher rated load than the 39 ft XG3369RT-ANSI (1,003 lbs), supporting a three-person crew with tools and materials at full platform height.
50 hp engine at 2,700 rpm — double the 25 hp of the 39 ft XG3369RT-ANSI sibling, scaled to the larger scissor stack and 50 percent higher rated load. Diesel drive for outdoor sites without charging infrastructure or where extended-shift operation rules out battery runtime.
9 ft 4 in wheelbase, 10 in ground clearance, 8 ft 2 in (inner) / 18 ft 4 in (outer wheel) turning radius — identical chassis platform to the 59 ft XG5390RT-ANSI sibling. Parts pool overlap and operator familiarity benefits for fleet operators running both height classes. 15,983 lbs total weight (10 percent lighter than XG5390RT-ANSI 17,637 lbs) reflects the shorter scissor stack.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 49'3" |
| Max. platform height | ft | 42'8" |
| Min. turning radius | ft | 8'2" (Inner) / 18'4" (Outer) |
| Min. ground clearance | in | 10 |
| Rated load | lbs | 1499 |
| Engine power / speed | hp / rpm | 50 / 2700 |
| Max. grade ability | % | 40 |
| Wheelbase | ft | 9'4" |
| Total weight | lbs | 15983 |
