45'3" maximum working height self-propelled scissor lift built to ANSI standards. 38'8" platform height, 705 lb (320 kg) lift capacity. AC drive electric. 6,944 lb total weight — 1,169 lb lighter than the 45-foot flagship XG4555AC-ANSI. 6'2" wheelbase, 7'7" outside turning radius, 0 inside turning radius. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 4 in minimum ground clearance. Suited for North American rental fleets, general contractors, and facility maintenance operations needing 38-foot platform reach where the 45-foot flagship is over-specified.

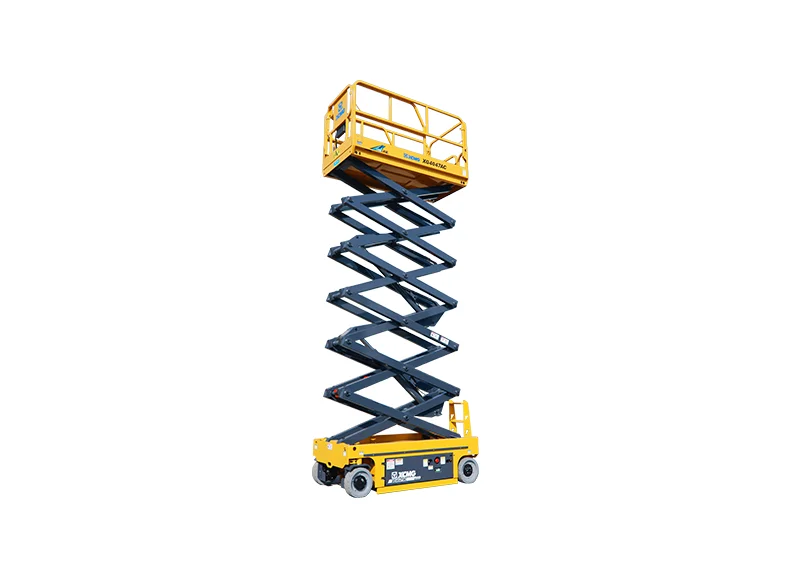

The XCMG XG4047AC-ANSI is a self-propelled scissor lift built to ANSI standards with 45'3" maximum working height (38'8" platform height) and 705 lb (320 kg) lift capacity — the mid-tall unit in the XCMG ANSI-certified scissor lift family, positioned between the 45-foot top tier and the 32-foot mid tier.
The XG4047AC-ANSI sits one tier below the XG4555AC-ANSI flagship (45'3" platform / 772 lb / 8,113 lb). The 4047 envelope drops 6'7" of platform height in exchange for 1,169 lb less deadweight (6,944 lb vs 8,113 lb) and 67 lb less capacity (705 lb vs 772 lb). 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 6'2" wheelbase, 7'7" outside turning radius (0 inside), 4 in minimum ground clearance. Built to ANSI A92.20. Suited for North American rental fleets, general contractors, and facility maintenance operations needing 38-foot platform reach where the 45-foot flagship is over-specified for the typical work envelope.
