ANSI Engine-Powered Rough Terrain Scissor Lift — 39 ft 4 in / 25 hp
ANSI-compliant engine-powered rough terrain scissor lift. 39 ft 4 in (12 m) maximum working height, 32 ft 10 in (10 m) platform height, 1,003 lbs rated load. 25 hp diesel engine at 3,000 rpm. 9,700 lbs total weight on a 7 ft 6 in wheelbase, 40 percent grade ability, 8 in ground clearance. Minimum turning radius 7 ft 7 in (inner wheel) / 15 ft 9 in (outer wheel). ANSI certification for North American market sale and rental fleet duty.

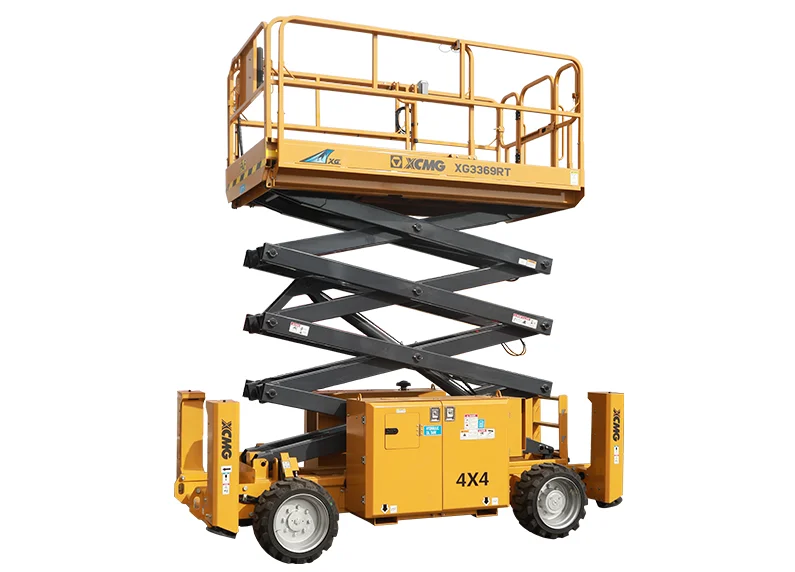

The XCMG XG3369RT-ANSI is an ANSI-compliant engine-powered rough terrain scissor lift with 39 ft 4 in (12 m) maximum working height, 32 ft 10 in (10 m) platform height, and 1,003 lbs rated load. Diesel drive on a 4-wheel rough terrain chassis — ANSI-certified for North American market sale and rental.
Powered by a 25 hp engine at 3,000 rpm. Total weight is 9,700 lbs on a 7 ft 6 in wheelbase. Minimum turning radius is 7 ft 7 in (inner wheel) / 15 ft 9 in (outer wheel), ground clearance 8 in, and the chassis climbs 40 percent grades. Rated load is 1,003 lbs — fits a two-person crew with tools at full platform height. ANSI compliance means certification for U.S. market construction, rental fleet, and infrastructure work where local rules require ANSI-approved aerial platforms. Sized for projects where 39 ft (12 m) working height is enough and ANSI certification is the binding requirement over the metric XG1218RT-AS sibling. Diesel drive for outdoor sites without charging infrastructure. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG3369RT-ANSI that fit it to ANSI-compliant 39 ft engine-powered rough terrain scissor lift work: ANSI certification, 39 ft reach, diesel drive, and rough terrain chassis.
ANSI-certified configuration for U.S. and Canadian market sale and rental. Required where local rules mandate ANSI-approved aerial platforms (most U.S. construction, infrastructure, and rental fleet operators). Direct ANSI variant of XCMG's 12 m engine-powered RT scissor lift platform.
39 ft 4 in (12 m) maximum working height, 32 ft 10 in (10 m) platform height, 1,003 lbs rated load — supports a two-person crew with tools at full platform height. Configured for the 39 ft height class typical of low-rise construction maintenance, infrastructure inspection, and rental fleet duty.
25 hp engine at 3,000 rpm. Diesel drive for outdoor sites without charging infrastructure or where fuel logistics is simpler than battery management. Suits extended-shift operation on rental fleet duty.
7 ft 6 in wheelbase, 8 in ground clearance, 40 percent maximum grade ability. Minimum turning radius 7 ft 7 in (inner) / 15 ft 9 in (outer wheel). 9,700 lbs total weight — sized for outdoor construction with uneven surfaces, slopes, and tight maneuvering.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 39'4" |
| Max. platform height | ft | 32'10" |
| Min. turning radius | ft | 7'7" (Inner) / 15'9" (Outer) |
| Min. ground clearance | in | 8 |
| Rated load | lbs | 1003 |
| Engine power / speed | hp / rpm | 25 / 3000 |
| Max. grade ability | % | 40 |
| Wheelbase | ft | 7'6" |
| Total weight | lbs | 9700 |
