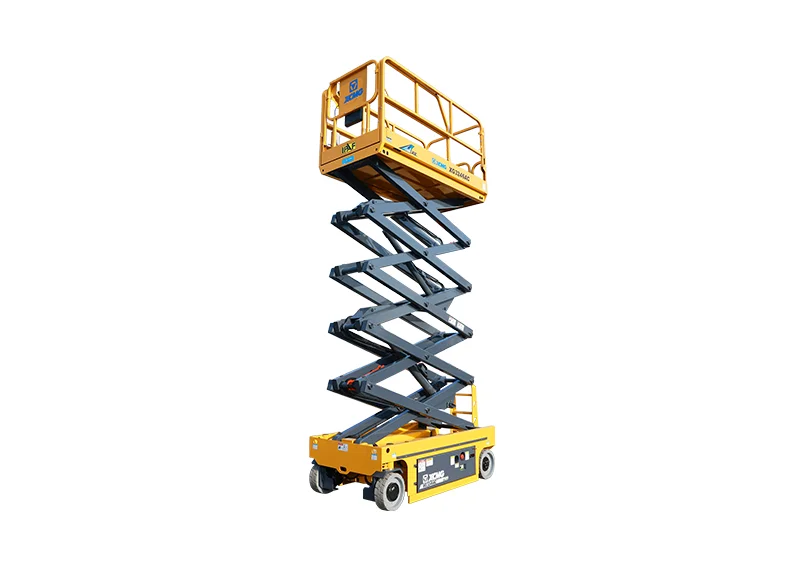

32 ft XCMG Scissor Lift — Mid-Tier ANSI Series
38'11" maximum working height self-propelled scissor lift built to ANSI standards. 32'4" platform height, 705 lb (320 kg) lift capacity. AC drive electric. 6,613 lb total weight — 331 lb below the 38-foot sibling XG4047AC-ANSI. 6'2" wheelbase shared with the 26-foot and 38-foot ANSI siblings, 7'7" outside turning radius, 0 inside turning radius. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 4 in minimum ground clearance. Suited for North American rental fleets, mid-bay warehouse maintenance, and general contracting at the 32-foot platform level.
The XCMG XG3246AC-ANSI is a self-propelled scissor lift built to ANSI standards with 38'11" maximum working height (32'4" platform height) and 705 lb (320 kg) lift capacity — the 32-foot platform unit in the XCMG ANSI scissor lift family, sized for mid-bay warehouse and general contracting work in the North American market.
The XG3246AC-ANSI sits in the mid-tier of the ANSI lineup — same 705 lb capacity as the 38-foot sibling XG4047AC-ANSI but with 32'4" platform height. 6,613 lb total weight — 331 lb less than the 38-foot sibling — reflecting the shorter scissor stack. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 6'2" wheelbase shared with the 26-foot and 38-foot ANSI siblings. 7'7" outside turning radius, 0 inside turning radius. 4 in minimum ground clearance. Suited for North American rental fleets, general contractors with typical 30-foot work envelopes, mid-bay warehouse maintenance, and facility crews where the 38-foot sibling is over-specified.
Five aspects of the XG3246AC-ANSI that position it as the 32-foot ANSI-certified scissor lift in the XCMG lineup: envelope, ANSI compliance, AC drive, shared chassis, and sibling positioning.
38'11" maximum working height and 32'4" maximum platform height. 705 lb rated lift capacity supports 2-person crew with tools. Sized for mid-bay warehouse work, general contracting at the 30-foot platform level, and facility maintenance in commercial buildings.
Built to ANSI A92.20 mobile elevating work platform standards — fits the unit for US and Canadian rental fleets, general contractors, and facility maintenance operations subject to OSHA-aligned MEWP requirements.
6,613 lb total weight — 331 lb lighter than the 38-foot sibling XG4047AC-ANSI (6,944 lb). For contractors with typical work envelopes under 30 feet, the weight saving and lower capital cost favor the 3246 over the 4047 — and the same 705 lb capacity is preserved.
6'2" wheelbase and 7'7" outside turning radius — same chassis dimensions as the 26-foot siblings XG2646AC-ANSI / XG2632AC-ANSI and the 38-foot XG4047AC-ANSI. Common chassis components across these four siblings (26/32/38-foot tiers) reduce inventory carrying cost for fleet operators standardizing on the ANSI lineup.
Step up to XG4047AC-ANSI (38'8" platform) for taller envelope at same capacity, or XG4555AC-ANSI flagship (45'3"). Step down to XG2646AC-ANSI (26'3" / 992 lb high-capacity), XG2632AC-ANSI (26'3" / 507 lb light), or 19-foot XG1932AC-ANSI / XG1930AC-ANSI. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 38'11" |
| Max. platform height | ft | 32'4" |
| Max. driving speed | mph | 2.48 (lowered) / 0.5 (elevated) |
| Min. turning radius (inner wheel) | ft | 0 |
| Min. turning radius (outer wheel) | ft | 7'7" |
| Min. ground clearance | in | 4 |
| Rated load | lbs | 705 |
| Max. grade ability | % | 25 |
| Wheel base | ft | 6'2" |
| Total weight | lbs | 6613 |
| Standard | - | ANSI A92.20 |
