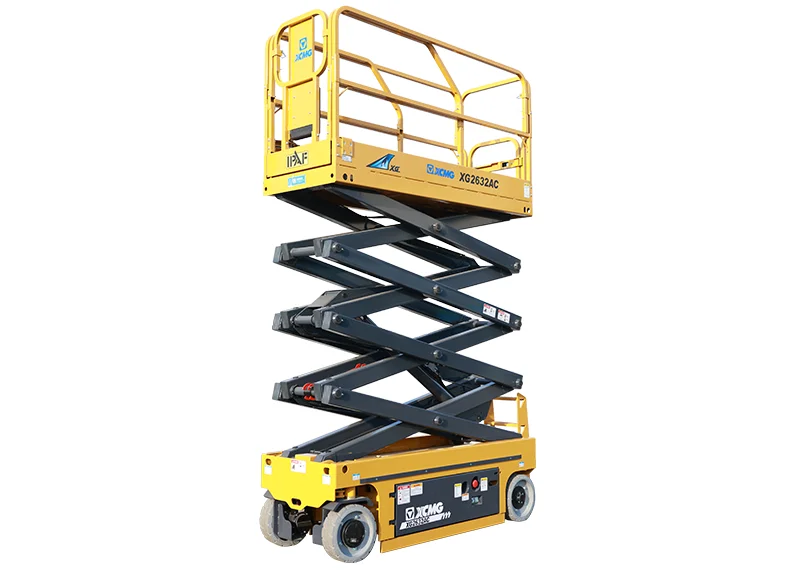

26 ft XCMG Scissor Lift — Light-Capacity ANSI Series
32'10" maximum working height self-propelled scissor lift built to ANSI standards. 26'3" platform height, 507 lb (230 kg) lift capacity. AC drive electric. 4,982 lb total weight — 926 lb lighter than the high-capacity sibling XG2646AC-ANSI (5,908 lb). Same 26-foot envelope, half the capacity. 6'2" wheelbase shared with 32-foot and 38-foot ANSI siblings, 7'7" outside turning radius, 0 inside turning radius. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. Suited for North American electrical contracting, painting and finishing, light HVAC service, and rental fleet work.
The XCMG XG2632AC-ANSI is a self-propelled scissor lift built to ANSI standards with 32'10" maximum working height (26'3" platform height) and 507 lb (230 kg) lift capacity — the light-capacity 26-foot platform unit in the XCMG ANSI scissor lift family, sized for crew-only access work at the 26-foot level.
The XG2632AC-ANSI pairs with the high-capacity sibling XG2646AC-ANSI (same 26'3" envelope / 992 lb / 5,908 lb). The 2632 trades capacity for 926 lb less deadweight (4,982 lb vs 5,908 lb) — easier on commercial floor loads, lower transport class. 2.48 mph stowed driving speed, 0.5 mph elevated. 25 percent grade ability. 6'2" wheelbase shared with the 32-foot and 38-foot ANSI siblings. 7'7" outside turning radius, 0 inside turning radius. 4 in minimum ground clearance. Built to ANSI A92.20. Suited for North American electrical contracting, painting and finishing at height, light HVAC service, facility maintenance in commercial buildings, and rental fleet work where customers need 26-foot platform reach without heavy materials.
Five aspects of the XG2632AC-ANSI that position it as the light-capacity 26-foot ANSI scissor lift: envelope, weight saving vs XG2646AC-ANSI, ANSI compliance, shared chassis, and target work fit.
32'10" maximum working height and 26'3" maximum platform height — same envelope as the high-capacity sibling XG2646AC-ANSI but with lighter-build platform and lift structure. Sized for warehouse maintenance, factory installation, and construction work at the 26-foot platform level.
507 lb rated lift capacity — supports 2-person crew plus tools but not heavy materials. Suited for work where the crew brings tools and consumables to platform height but materials are not part of the lift load: electrical inspection and rough-in, painting, drywall finishing, ceiling work, light HVAC service.
4,982 lb total weight — 16 percent below the high-capacity 26-foot sibling XG2646AC-ANSI (5,908 lb). Easier on commercial floor loads, lower over-the-road transport class, faster jobsite relocation. Suited for fleet operators serving multi-site contractors who relocate equipment frequently.
Built to ANSI A92.20 mobile elevating work platform standards — fits the unit for US and Canadian rental fleets, general contractors, and facility maintenance operations subject to OSHA-aligned MEWP requirements. 6'2" wheelbase, 7'7" outside turning radius, 0 inside turning radius.
Choose XG2632AC-ANSI when the project work is crew-and-tools at 26 feet without heavy materials — 926 lb weight saving over the XG2646AC-ANSI matters. Choose the high-capacity XG2646AC-ANSI when materials handling at platform drives the requirement. Step up to 32-foot XG3246AC-ANSI or 38-foot XG4047AC-ANSI, or down to 19-foot XG1932AC-ANSI / XG1930AC-ANSI. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 32'10" |
| Max. platform height | ft | 26'3" |
| Max. driving speed | mph | 2.48 (lowered) / 0.5 (elevated) |
| Min. turning radius (inner wheel) | ft | 0 |
| Min. turning radius (outer wheel) | ft | 7'7" |
| Min. ground clearance | in | 4 |
| Rated load | lbs | 507 |
| Max. grade ability | % | 25 |
| Wheel base | ft | 6'2" |
| Total weight | lbs | 4982.45 |
| Standard | - | ANSI A92.20 |
