Electric Rough Terrain Scissor Lift — 22 m / 48 V
Electric rough terrain scissor lift. 22 m maximum working height, 20 m platform height, 750 kg rated load — tallest in the XCMG ERT scissor lift range. 48 V / 630 Ah battery pack (33 percent more capacity than the 18 m XG1823ERT). 14,200 kg total weight on a 3,300 mm wheelbase — roughly 70 percent heavier than the 18 m sibling. 30 percent grade ability, 400 mm ground clearance, minimum turning radius 1.25 m inside / 3.4 m outside. Extendable working platform with foldable fence per source.

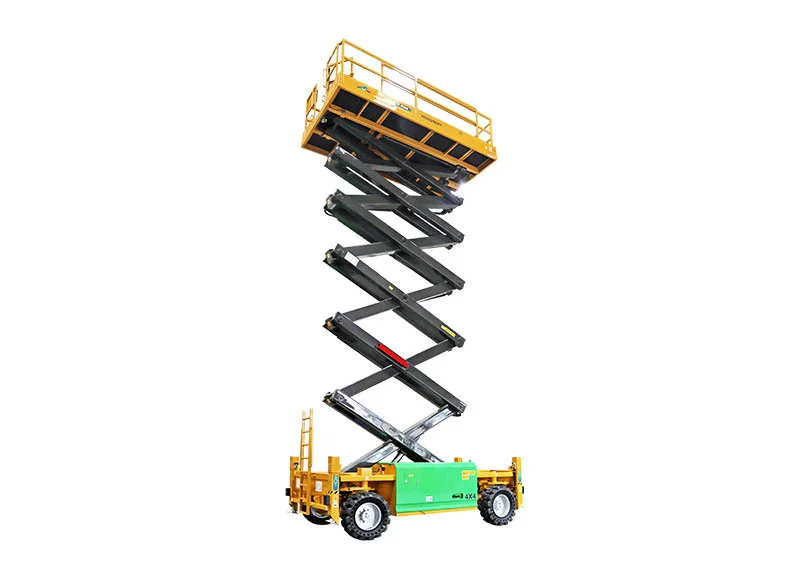

The XCMG XG2225ERT is an electric rough terrain scissor lift with 22 m maximum working height, 20 m platform height, and 750 kg rated load — the tallest in the XCMG ERT scissor lift range. Battery-electric drive on a heavier rough terrain chassis sized for the 22 m reach class and larger working platform.
Powered by a 48 V / 630 Ah battery pack (33 percent more capacity than the 18 m XG1823ERT, scaled to the longer reach and heavier chassis). Total weight is 14,200 kg on a 3,300 mm wheelbase — roughly 70 percent heavier than the 18 m sibling. Minimum turning radius 1.25 m inside / 3.4 m outside (tighter than the smaller siblings despite the larger chassis), ground clearance 400 mm, 30 percent grade ability. Per source, the working platform extends and the foldable fence supports easier transport. Suited for installation of large loads and multi-person crew work where 18 m working height isn't enough but the project needs battery drive. Sized for high-rise facade, large factory installation, and rental fleet duty on emission-restricted sites. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG2225ERT that fit it to 22 m electric rough terrain scissor lift work: tallest in the ERT range, extendable platform, heavier chassis, and tighter turning radius.
22 m maximum working height, 20 m platform height — 22 percent more reach than the 18 m XG1823ERT sibling and the tallest in the XCMG electric rough terrain scissor lift range. 750 kg rated load supports multi-person crew work at full platform height.
Per XCMG source: the working platform can be extended and expanded for more working space, and the foldable fence makes transport and movement simpler. Suited for installation of large loads and objects, and multi-person working together at the same workpoint.
48 V system voltage with 630 Ah battery capacity — 33 percent more capacity than the 18 m XG1823ERT (480 Ah), scaled to the larger chassis and longer reach class. Zero direct emission for outdoor sites with emission restrictions.
3,300 mm wheelbase, 400 mm ground clearance, 14,200 kg total weight, 30 percent grade ability. Minimum turning radius is 1.25 m inside / 3.4 m outside — tighter than the 15 m and 18 m siblings (both 2.5 m inside / 5.6 m outside) despite the heavier chassis, supporting tighter maneuvering at jobsites with restricted footprint.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 22 |
| Max. platform height | m | 20 |
| Min. turning radius | m | 1.25 (inside) / 3.4 (outside) |
| Min. ground clearance | mm | 400 |
| Rated load | kg | 750 |
| Battery voltage | V | 48 |
| Battery capacity | Ah | 630 |
| Max. grade ability | % | 30 |
| Wheelbase | mm | 3300 |
| Total weight | kg | 14200 |
