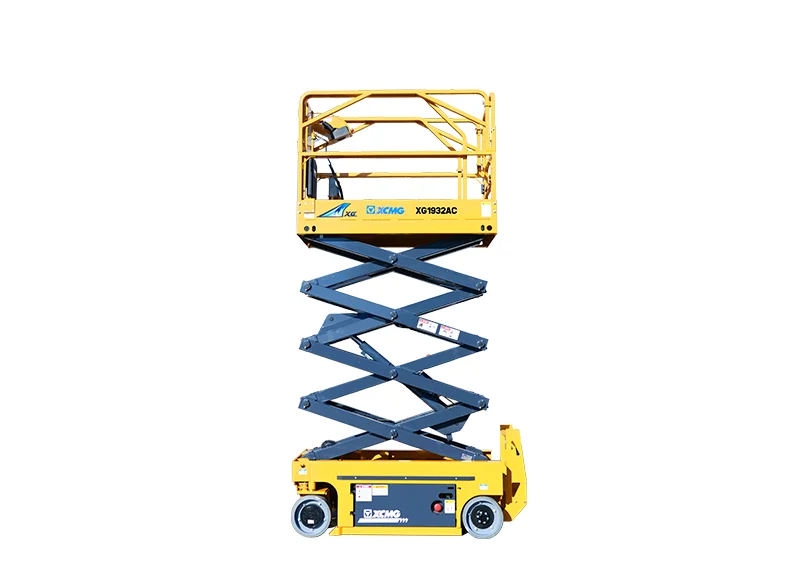

19 ft XCMG Scissor Lift — Entry-Tier ANSI Series
25'7" maximum working height self-propelled scissor lift built to ANSI standards. 19' platform height, 507 lb (230 kg) lift capacity. AC drive electric. 3,483 lb total weight, 4'6" wheelbase, 5'9" outside turning radius, 0 inside turning radius — tighter footprint than the 26+ foot ANSI siblings. 2.79 mph stowed driving speed (faster than the taller siblings at 2.48 mph), 0.5 mph elevated. 25 percent grade ability. 3 in minimum ground clearance. Suited for low-rise warehouse maintenance, retail and supermarket fit-out, indoor facility work, and rental fleet work in ANSI markets.
The XCMG XG1932AC-ANSI is a self-propelled scissor lift built to ANSI standards with 25'7" maximum working height (19' platform height) and 507 lb (230 kg) lift capacity — the 19-foot platform entry tier in the XCMG ANSI scissor lift family, sized for narrow-aisle North American indoor work.
The XG1932AC-ANSI pairs with the related sibling XG1930AC-ANSI (same 19' platform / 507 lb / 3,417 lb) — the two units share envelope and capacity but differ in 66 lb of deadweight (3,483 lb vs 3,417 lb) likely reflecting platform-width or accessory differences. 2.79 mph stowed driving speed (faster than the taller siblings at 2.48 mph), 0.5 mph elevated. 25 percent grade ability. 4'6" wheelbase, 5'9" outside turning radius (0 inside) — tighter footprint than the 26+ foot siblings. 3 in minimum ground clearance. Built to ANSI A92.20. Suited for low-rise warehouse maintenance, retail and supermarket fit-out, indoor facility work, light electrical contracting, and rental fleet operators serving customers with 19-foot platform demand.
Five aspects of the XG1932AC-ANSI that position it as the 19-foot entry tier in the XCMG ANSI scissor lift family: compact envelope, ANSI compliance, faster transit, narrower footprint, and pairing with XG1930AC-ANSI sibling.
25'7" maximum working height and 19' maximum platform height — the entry tier in the XCMG ANSI scissor lift family. 507 lb rated lift capacity supports 2-person crew plus tools. Sized for low-rise indoor work — retail fit-out, supermarket maintenance, warehouse stocking, office fit-out, light electrical, painting.
Built to ANSI A92.20 mobile elevating work platform standards — fits the unit for US and Canadian rental fleets, general contractors, and facility maintenance operations subject to OSHA-aligned MEWP requirements.
2.79 mph stowed driving speed, 0.5 mph elevated. Faster stowed transit than the 26+ foot siblings (2.48 mph) — cuts inter-task transit time for crews moving between work zones in large indoor environments. 25 percent grade ability.
4'6" wheelbase and 5'9" outside turning radius — 1'8" shorter wheelbase and 1'10" tighter outside turn than the 26-to-38-foot ANSI siblings (6'2" wheelbase / 7'7" outside turn). Works in retail aisles, warehouse racking rows, and office floor plates where taller siblings can't maneuver.
Pair with the sibling XG1930AC-ANSI sharing the same 19' envelope and 507 lb capacity but 66 lb less deadweight (3,417 lb vs 3,483 lb). Step up to 26-foot XG2632AC-ANSI (507 lb, same capacity) or XG2646AC-ANSI (992 lb high-capacity). Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 25'7" |
| Max. platform height | ft | 19' |
| Max. driving speed | mph | 2.79 (lowered) / 0.5 (elevated) |
| Min. turning radius (inner wheel) | ft | 0 |
| Min. turning radius (outer wheel) | ft | 5'9" |
| Min. ground clearance | in | 3 |
| Rated load | lbs | 507 |
| Max. grade ability | % | 25 |
| Wheel base | ft | 4'6" |
| Total weight | lbs | 3483.3 |
| Standard | - | ANSI A92.20 |
Tell us your spec, budget, and destination port. You'll get a matching shortlist with photos, working videos, and pricing within 24 hours.
