Engine-powered rough terrain scissor lift. 18.1 m maximum working height, 16.1 m platform height, 680 kg rated load. 36 kW diesel engine at 2,600 rpm (36.8 kW at 2,500 rpm per source variant) — same engine class as the 15 m XG1523RT sibling. 8,000 kg total weight on the same 2,850 mm wheelbase, 250 kg lighter than the battery XG1823ERT (8,380 kg). 40 percent grade ability, 253 mm ground clearance, minimum turning radius 2.5 m inside / 5.6 m outside.

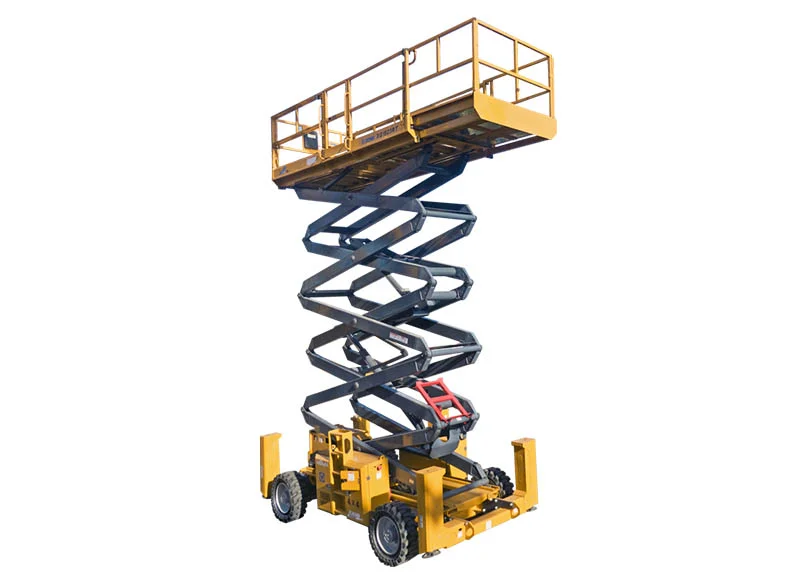

The XCMG XG1823RT is an engine-powered rough terrain scissor lift with 18.1 m maximum working height, 16.1 m platform height, and 680 kg rated load. Diesel drive on a 4-wheel rough terrain chassis — engine-powered counterpart to the battery XG1823ERT at the same 18 m height class.
Powered by a 36 kW engine at 2,600 rpm (or 36.8 kW at 2,500 rpm per source variant). Same engine class as the 15 m XG1523RT sibling, sized up only on chassis — total weight is 8,000 kg on the same 2,850 mm wheelbase, 250 kg lighter than the battery XG1823ERT (8,380 kg). Minimum turning radius is 2.5 m inside / 5.6 m outside, ground clearance 253 mm, and the chassis climbs 40 percent grades. Rated load is 680 kg, same as the 15 m RT sibling. Choose XG1823RT when project reach demands 18 m class with diesel drive — for fuel-supplied outdoor sites or when extended-shift operation rules out battery runtime constraints. Sized for mid-rise facade work, infrastructure maintenance at height, construction, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
