Hydraulic-Drive Scissor Lift — 15.8 m / 350 kg
Battery hydraulic-drive scissor lift. 15.8 m maximum working height, 13.8 m platform height, 350 kg rated load — tallest in the XCMG indoor hydraulic-drive scissor lift range. Hydraulic-drive counterpart to the AC XG1614AC. Hydraulic drive on a 4-wheel chassis. 3,550 kg total weight on a 2,240 mm wheelbase — 130 kg lighter than the XG1614AC (3,680 kg). Maximum driving speed 3 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.65 m outside, 25 percent grade ability.

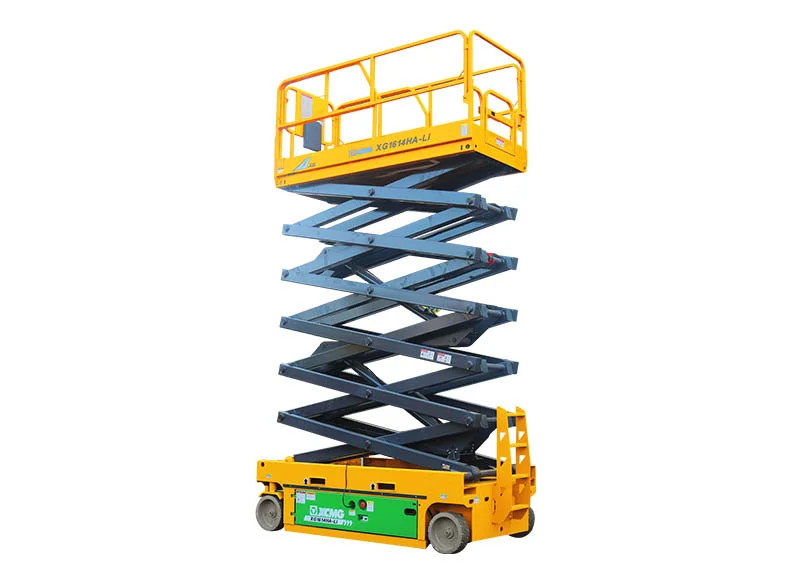

The XCMG XG1614HA is a battery hydraulic-drive scissor lift with 15.8 m maximum working height, 13.8 m platform height, and 350 kg rated load. Hydraulic-drive counterpart to the AC XG1614AC at the 16 m height class — tallest in the XCMG indoor hydraulic-drive scissor lift range.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4 km/h). Total weight is 3,550 kg on a 2,240 mm wheelbase — 130 kg lighter than the XG1614AC (3,680 kg). Minimum turning radius 2.65 m outside, ground clearance 20 mm (pothole protection support) / 77.5 mm (retracted), 25 percent grade ability. 350 kg rated load matches the AC sibling. Choose XG1614HA when the operator and fleet prefer hydraulic drive characteristics, hydraulic-focused parts pool standardization, or the 130 kg lighter machine weight matters for transport or indoor floor loading. Choose XG1614AC when faster stowed transit between workpoints matters more. Sized for high indoor maintenance, tall warehouse work, large factory installation at 16 m class, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1614HA that fit it to 16 m hydraulic-drive indoor scissor lift work: tallest in the HA indoor range, hydraulic drive, lighter than AC sibling, and longer wheelbase chassis.
15.8 m maximum working height, 13.8 m platform height — tallest in the XCMG indoor hydraulic-drive scissor lift range. Sized for high indoor maintenance, tall warehouse work, and large factory installation at 16 m class.
Hydraulic drive system. 3,550 kg total weight — 130 kg lighter than the XG1614AC (3,680 kg). Suits fleets preferring hydraulic drive characteristics, hydraulic-focused parts pool standardization, or transport-constrained fleet operation.
2,240 mm wheelbase — same as the AC XG1614AC sibling, scaled to the heavier 16 m machine and longer scissor stack stability requirements. 19 percent longer than the 1,877 mm wheelbase of the 10-14 m HA siblings (XG1008HA, XG1012HA, XG1212HA, XG1412HA).
Same 15.8 m / 13.8 m height envelope and 350 kg rated load as the AC XG1614AC sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3 km/h vs 4 km/h on the AC sibling) but 130 kg lighter machine weight. Choose XG1614HA for hydraulic-standardized fleets or weight-constrained transport.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 15.8 |
| Max. platform height | m | 13.8 |
| Max. driving speed | km/h | 3 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.65 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 77.5 (retracted) |
| Max. lift capacity | kg | 350 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 2240 |
| Total weight | kg | 3550 |
