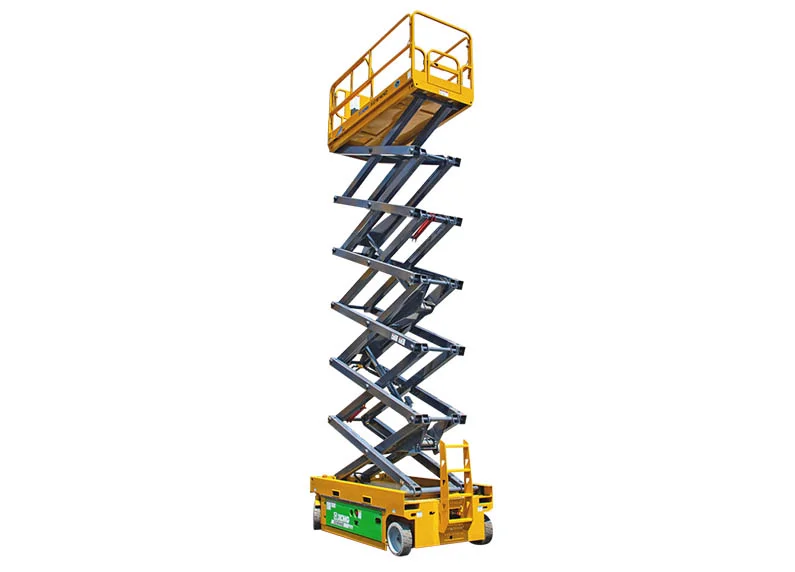

AC Electric Scissor Lift — 15.8 m / 350 kg
Battery-electric scissor lift. 15.8 m maximum working height, 13.8 m platform height, 350 kg rated load — tallest in the XCMG indoor AC scissor lift range. AC drive electric on a 4-wheel chassis. 3,680 kg total weight on a 2,240 mm wheelbase — 19 percent longer wheelbase than the 10-14 m AC siblings (1,877 mm), scaled to the heavier 16 m machine. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.65 m outside, 25 percent grade ability.
The XCMG XG1614AC is a battery-electric scissor lift with 15.8 m maximum working height, 13.8 m platform height, and 350 kg rated load. AC drive on a 4-wheel indoor chassis — the tallest in the XCMG indoor AC scissor lift range.
AC drive electric. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Total weight is 3,680 kg on a 2,240 mm wheelbase — 19 percent longer wheelbase than the 10/12/14 m AC siblings (1,877 mm), scaled to the heavier 16 m machine and longer scissor stack. Minimum turning radius 2.65 m outside (15 percent larger than the 2.3 m of the smaller AC siblings), ground clearance 20 mm (pothole protection support) / 77.5 mm (retracted), 25 percent grade ability. 350 kg rated load supports a one-to-two operator crew with tools at full platform height. Choose XG1614AC when the project needs 16 m indoor reach class with AC drive — for higher indoor maintenance, tall warehouse work, large factory installation at height, and rental fleet duty where the heavier chassis and wider turning radius fit site constraints. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1614AC that fit it to 16 m AC indoor scissor lift work: tallest in the AC indoor range, longer wheelbase, AC drive, and 350 kg rated load.
15.8 m maximum working height, 13.8 m platform height — tallest in the XCMG indoor AC scissor lift range. 14 percent more reach than the 13.8 m XG1412AC sibling. Sized for high indoor maintenance, tall warehouse work, and large factory installation at height.
2,240 mm wheelbase — 19 percent longer than the 1,877 mm wheelbase shared by the 10-14 m AC siblings (XG1008AC, XG1012AC, XG1212AC, XG1412AC). Sized for the heavier 16 m machine and longer scissor stack stability requirements. 3,680 kg total weight.
350 kg rated load — supports a one-to-two operator crew with tools at full platform height. Minimum turning radius 2.65 m outside (15 percent larger than the 2.3 m of the smaller AC siblings). 25 percent grade ability. Ground clearance 20 mm (pothole protection) / 77.5 mm (retracted).
AC drive electric powertrain. Maximum driving speed 4 km/h stowed (faster transit than the 3 km/h XG1614HA sibling), 0.8 km/h raised. Suits jobsites with longer distances between workpoints inside larger facility footprints.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 15.8 |
| Max. platform height | m | 13.8 |
| Max. driving speed | km/h | 4 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.65 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 77.5 (retracted) |
| Max. lift capacity | kg | 350 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 2240 |
| Total weight | kg | 3680 |
