Engine-Powered Rough Terrain Scissor Lift — 15 m / 36 kW
Engine-powered rough terrain scissor lift. 15 m maximum working height, 13 m platform height, 680 kg rated load. 36 kW diesel engine at 2,600 rpm (36.8 kW at 2,500 rpm per source variant). 7,250 kg total weight on a 2,850 mm wheelbase — 5 percent lighter than the battery XG1523ERT sibling (7,640 kg). 40 percent grade ability, 253 mm ground clearance, minimum turning radius 2.5 m inside / 5.6 m outside. Diesel counterpart to the battery XG1523ERT.

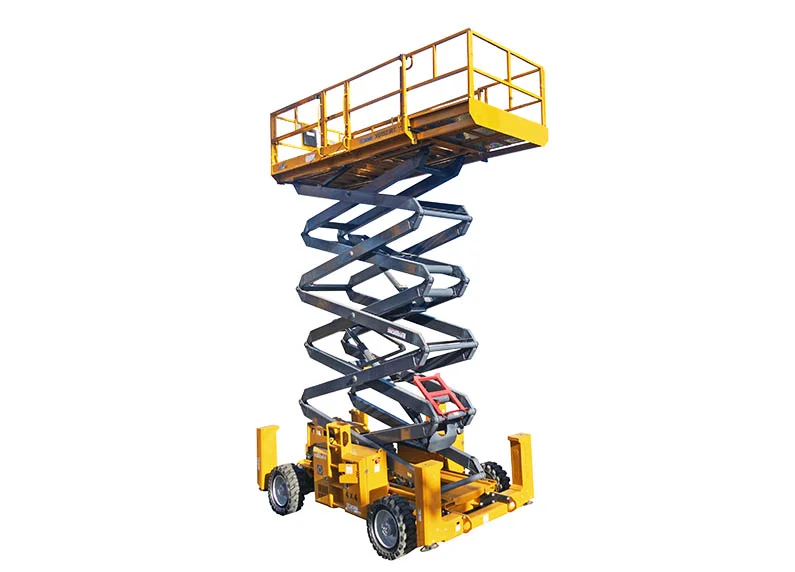

The XCMG XG1523RT is an engine-powered rough terrain scissor lift with 15 m maximum working height, 13 m platform height, and 680 kg rated load. Diesel drive on a 4-wheel rough terrain chassis — engine-powered counterpart to the battery XG1523ERT at the same 15 m height class.
Powered by a 36 kW engine at 2,600 rpm (or 36.8 kW at 2,500 rpm per source variant). Total weight is 7,250 kg on a 2,850 mm wheelbase — 5 percent lighter than the battery XG1523ERT (7,640 kg) due to the diesel powertrain versus the 48 V / 420 Ah battery pack. Minimum turning radius is 2.5 m inside / 5.6 m outside, ground clearance 253 mm, and the chassis climbs 40 percent grades. Rated load is 680 kg, supporting a two-person crew with tools at full platform height. Choose XG1523RT when site emission rules permit diesel and fuel logistics is simpler than charging infrastructure on the project schedule; choose the XG1523ERT sibling when battery drive is required. Sized for construction, infrastructure maintenance, road construction support, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1523RT that fit it to 15 m engine-powered rough terrain scissor lift work: diesel drive, 4WD chassis, 15 m reach, and positioning against the battery sibling.
36 kW engine at 2,600 rpm (36.8 kW at 2,500 rpm per source variant). Diesel drive for outdoor sites without charging infrastructure, where fuel logistics is simpler than battery management on the project schedule, or where extended-shift operation rules out battery runtime constraints.
15 m maximum working height, 13 m platform height, 680 kg rated load — supports a two-person crew with tools and materials at full platform height. Configured for the 15 m height class typical of construction, infrastructure maintenance, and rental fleet duty.
2,850 mm wheelbase, 253 mm ground clearance, 40 percent maximum grade ability. Minimum turning radius 2.5 m inside / 5.6 m outside — sized for outdoor construction sites with uneven surfaces, slopes, and tight maneuvering between obstacles. 7,250 kg total weight.
Same 15 m / 13 m height envelope as the battery XG1523ERT sibling but with 36 kW diesel engine in place of the 48 V / 420 Ah battery pack. Choose XG1523RT when site emission rules permit diesel and fuel logistics is simpler than charging infrastructure; choose XG1523ERT when emission restrictions favour battery drive.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 15 |
| Max. platform height | m | 13 |
| Min. turning radius | m | 2.5 (inside) / 5.6 (outside) |
| Min. ground clearance | mm | 253 |
| Rated load | kg | 680 |
| Engine power / speed | kW / r/min | 36 / 2600 (or 36.8 / 2500) |
| Max. grade ability | % | 40 |
| Wheelbase | mm | 2850 |
| Total weight | kg | 7250 |
