Electric Rough Terrain Scissor Lift — 15 m / 48 V
Electric rough terrain scissor lift. 15 m maximum working height, 13 m platform height, 700 kg rated load. 48 V / 420 Ah battery pack — zero direct emission for outdoor sites with emission restrictions. 7,640 kg total weight on a 2,850 mm wheelbase, 40 percent grade ability, 253 mm ground clearance. Minimum turning radius 2.5 m inside / 5.6 m outside. Battery-electric counterpart to the diesel XG1523RT sibling at the same 15 m height class.

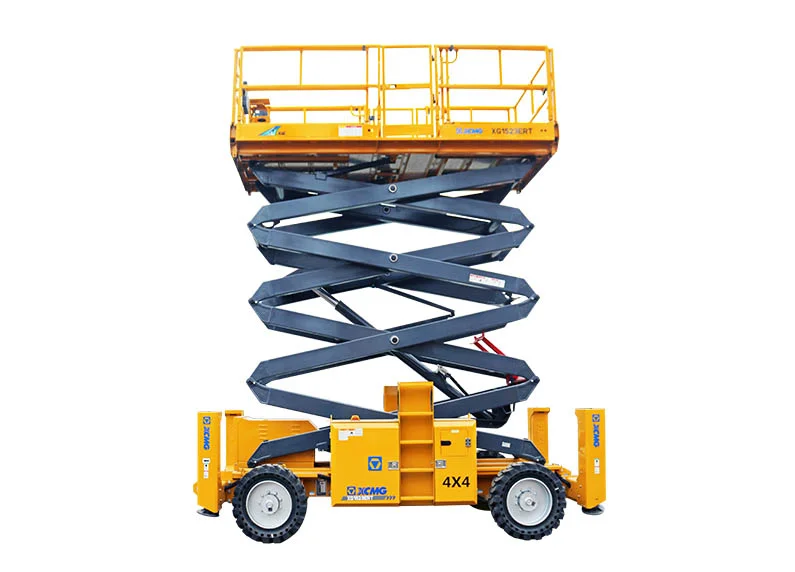

The XCMG XG1523ERT is an electric rough terrain scissor lift with 15 m maximum working height, 13 m platform height, and 700 kg rated load. Battery-electric drive on a 4-wheel rough terrain chassis suits outdoor construction sites where engine emissions are restricted but terrain rules out an indoor AC scissor lift.
Powered by a 48 V / 420 Ah battery pack. Total weight is 7,640 kg on a 2,850 mm wheelbase. Minimum turning radius is 2.5 m inside / 5.6 m outside, ground clearance 253 mm, and the chassis climbs 40 percent grades — the load envelope expected on uneven jobsites. The rated load supports a small two-person crew with tools and materials at full platform height. Choose XG1523ERT when the project needs the 15 m height class without diesel emissions or fuel handling on site, and the cost premium versus the engine-powered XG1523RT sibling is justified by indoor/outdoor mixed duty or by environmental restrictions. Genuine XCMG parts and authorized service available through me-equipment.com.
Four aspects of the XG1523ERT that fit it to 15 m electric rough terrain scissor lift work: battery drive, 4WD rough terrain chassis, rated load, and positioning against the diesel sibling.
48 V system voltage with 420 Ah battery capacity. Battery-electric drive eliminates engine emissions, fuel handling, and engine noise on site — suits projects with emission restrictions, indoor/outdoor mixed duty, or facility owner policies limiting diesel runtime near operating equipment or personnel.
15 m maximum working height, 13 m platform height, 700 kg rated load — supports a two-person crew with tools and materials at full platform height. Configured for the 15 m height class typical of factory installation, low-rise facade work, infrastructure maintenance, and rental fleet duty.
2,850 mm wheelbase, 253 mm ground clearance, 40 percent maximum grade ability. Minimum turning radius 2.5 m inside / 5.6 m outside — sized for outdoor construction sites with uneven surfaces, slopes, and tight maneuvering between obstacles. 7,640 kg total weight.
Same 15 m / 13 m height envelope as the engine-powered XG1523RT sibling but with 48 V battery drive in place of the 36 kW diesel engine. Choose XG1523ERT when site emission rules or project owner restrictions favour battery drive; choose XG1523RT when fuel logistics is simpler than charging infrastructure on the project schedule.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 15 |
| Max. platform height | m | 13 |
| Min. turning radius | m | 2.5 (inside) / 5.6 (outside) |
| Min. ground clearance | mm | 253 |
| Rated load | kg | 700 |
| Battery voltage | V | 48 |
| Battery capacity | Ah | 420 |
| Max. grade ability | % | 40 |
| Wheelbase | mm | 2850 |
| Total weight | kg | 7640 |
