Hydraulic-Drive Scissor Lift — 13.8 m / 320 kg
Battery hydraulic-drive scissor lift. 13.8 m maximum working height, 11.8 m platform height, 320 kg rated load — hydraulic-drive counterpart to the AC XG1412AC. Hydraulic drive on a 4-wheel chassis. 2,920 kg total weight on a 1,877 mm wheelbase — 230 kg lighter than the XG1412AC (3,150 kg). Maximum driving speed 3.2 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 100 mm (retracted).

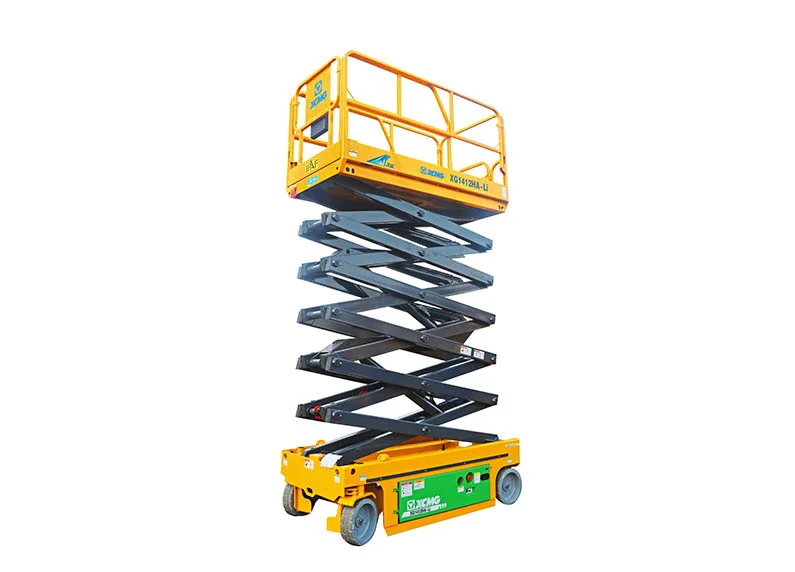

The XCMG XG1412HA is a battery hydraulic-drive scissor lift with 13.8 m maximum working height, 11.8 m platform height, and 320 kg rated load. Hydraulic-drive counterpart to the AC XG1412AC at the 14 m height class.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3.2 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4 km/h). Total weight is 2,920 kg on a 1,877 mm wheelbase — 230 kg lighter than the XG1412AC (3,150 kg). Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 320 kg rated load matches the AC sibling. Choose XG1412HA when the operator and fleet prefer hydraulic drive characteristics or hydraulic-focused parts pool standardization. The 230 kg lighter machine weight (7 percent less than the AC sibling) matters for transport on standard light-duty trailers and indoor floor loading. Choose XG1412AC when faster stowed transit between workpoints matters more, or when the project demands zero-emission low-noise operation for office/hospital/school work. Sized for higher indoor maintenance, factory installation at 14 m class, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1412HA that fit it to 14 m hydraulic-drive indoor scissor lift work: hydraulic drive, lighter than AC sibling, 13.8 m reach, and shared wheelbase.
Hydraulic drive system. 2,920 kg total weight — 230 kg (7 percent) lighter than the XG1412AC (3,150 kg). Suits fleets where machine weight matters for transport on standard light-duty trailers, indoor floor loading, or hydraulic-standardized parts pool maintenance.
13.8 m maximum working height, 11.8 m platform height, 320 kg rated load — same scissor envelope as the AC XG1412AC sibling. Supports a one-to-two operator crew with tools at full platform height.
1,877 mm wheelbase — shared with the XG1008HA, XG1012HA, and XG1212HA siblings. Parts pool overlap for fleet operators running multiple height classes. 2.3 m minimum turning radius outside. 25 percent grade ability.
Same 13.8 m / 11.8 m height envelope and 320 kg rated load as the AC XG1412AC sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3.2 km/h vs 4 km/h on the AC sibling) but 230 kg lighter machine weight. Choose XG1412HA for hydraulic-standardized fleets; XG1412AC for zero-emission low-noise office/hospital/school work.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 13.8 |
| Max. platform height | m | 11.8 |
| Max. driving speed | km/h | 3.2 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 320 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 2920 |
