Battery-electric scissor lift. 13.8 m maximum working height, 11.8 m platform height, 320 kg rated load. AC drive electric on a 4-wheel chassis — per XCMG source: zero direct emissions and low noise enable working in office buildings, hospitals, schools, and similar environments. 3,150 kg total weight on a 1,877 mm wheelbase. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 100 mm (retracted).

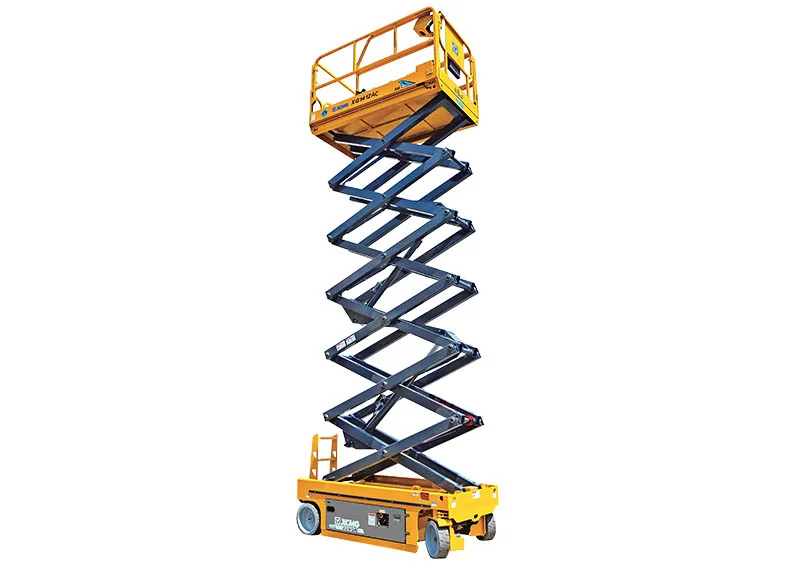

The XCMG XG1412AC is a battery-electric scissor lift with 13.8 m maximum working height, 11.8 m platform height, and 320 kg rated load. AC drive on a 4-wheel indoor chassis — the 14 m height class in the XCMG indoor scissor lift range.
AC drive electric powertrain — per XCMG source: zero direct emissions and low noise enable working in office buildings, hospitals, schools, and similar environments. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Total weight is 3,150 kg on a 1,877 mm wheelbase — 5 percent heavier than the 12 m XG1212AC sibling (3,000 kg), reflecting the longer scissor stack for the extra 1.95 m working height. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 320 kg rated load supports a one-to-two operator crew with tools at full platform height. Sized for office building maintenance, hospital and school installation work, indoor factory installation at 14 m class, and rental fleet duty on noise-sensitive sites. Same 1,877 mm wheelbase as the 10 m and 12 m AC siblings for parts pool overlap. Genuine XCMG parts and authorized service via me-equipment.com.
