Hydraulic-Drive Scissor Lift — 12 m / 320 kg
Battery hydraulic-drive scissor lift. 12 m maximum working height, 10 m platform height, 320 kg rated load — hydraulic-drive counterpart to the AC XG1212AC. Hydraulic drive on a 4-wheel chassis. 2,850 kg total weight on a 1,877 mm wheelbase — 150 kg lighter than the XG1212AC (3,000 kg). Maximum driving speed 3.2 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability. Reaches 12 m maximum working height vs the AC sibling's 11.85 m — 15 cm more reach in the HA configuration per source.

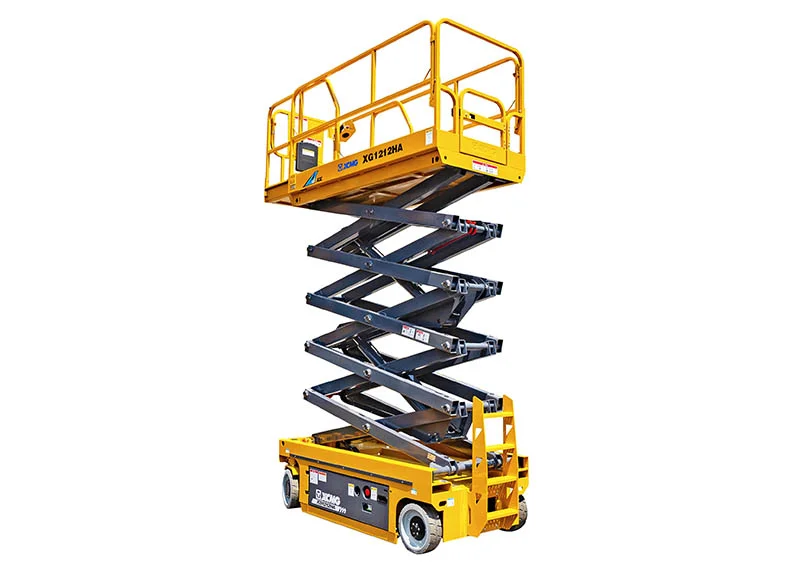

The XCMG XG1212HA is a battery hydraulic-drive scissor lift with 12 m maximum working height, 10 m platform height, and 320 kg rated load. Hydraulic-drive counterpart to the AC XG1212AC at the 12 m height class.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3.2 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4 km/h) due to hydraulic drive characteristics. Total weight is 2,850 kg on a 1,877 mm wheelbase — 150 kg lighter than the XG1212AC (3,000 kg). Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 320 kg rated load matches the AC sibling. Reaches 12 m maximum working height vs the AC sibling's 11.85 m — 15 cm more reach in the HA configuration per source. Choose XG1212HA when the operator and fleet prefer hydraulic drive characteristics or hydraulic-focused parts pool standardization. Choose XG1212AC when faster stowed transit between workpoints matters more. Sized for indoor factory installation, higher indoor maintenance work, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1212HA that fit it to 12 m hydraulic-drive indoor scissor lift work: hydraulic drive, lighter than AC sibling, 12 m reach, and shared wheelbase.
Hydraulic drive system. 2,850 kg total weight — 150 kg lighter than the XG1212AC (3,000 kg). Suits fleets preferring hydraulic drive characteristics or hydraulic-focused parts pool standardization.
12 m maximum working height, 10 m platform height, 320 kg rated load — 15 cm more reach than the AC XG1212AC sibling (11.85 m) per source. Supports a one-to-two operator crew with tools at full platform height.
1,877 mm wheelbase — shared with the XG1008HA and XG1012HA siblings. Parts pool overlap for fleet operators running multiple height classes. 2.3 m minimum turning radius outside. 25 percent grade ability.
Same chassis footprint and 320 kg rated load as the AC XG1212AC sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3.2 km/h vs 4 km/h on the AC sibling) but 150 kg lighter machine weight. Choose XG1212HA for hydraulic-standardized fleets.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 12 |
| Max. platform height | m | 10 |
| Max. driving speed | km/h | 3.2 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 320 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 2850 |
