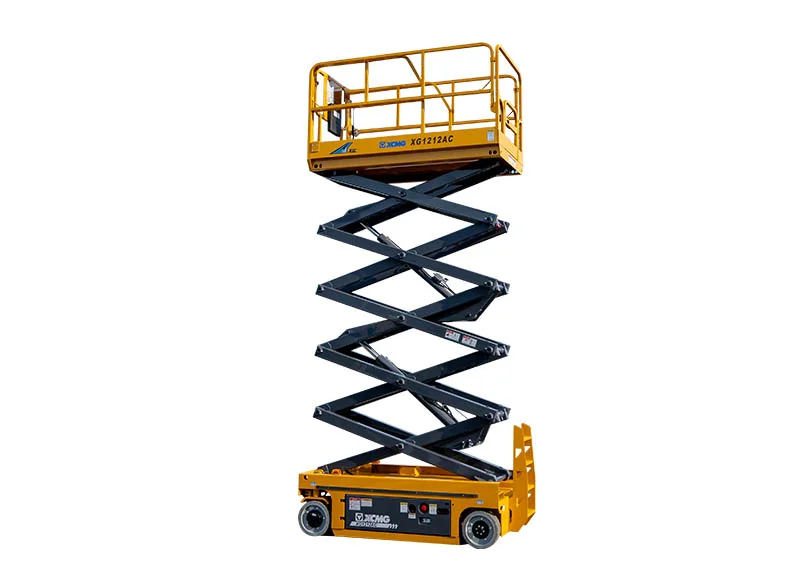

AC Electric Scissor Lift — 11.85 m / 320 kg
Battery-electric scissor lift. 11.85 m maximum working height, 9.85 m platform height, 320 kg rated load. AC drive electric on a 4-wheel chassis. 3,000 kg total weight on a 1,877 mm wheelbase — 12 percent heavier than the 10 m XG1012AC sibling (2,680 kg), reflecting the longer scissor stack for the extra 1.85 m of working height. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability.
The XCMG XG1212AC is a battery-electric scissor lift with 11.85 m maximum working height, 9.85 m platform height, and 320 kg rated load. AC drive on a 4-wheel indoor chassis — the 12 m height class with mid-range rated load between the 230 kg XG1008-series and the 450 kg XG1012-series.
AC drive electric. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Total weight is 3,000 kg on a 1,877 mm wheelbase — 12 percent heavier than the 10 m XG1012AC sibling (2,680 kg), reflecting the longer scissor stack for the extra 1.85 m of working height. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 320 kg rated load supports a one-to-two operator crew with tools at full platform height. Choose XG1212AC when the project needs 12 m height with mid-range load capacity and the indoor chassis fits site constraints. Same 1,877 mm wheelbase as the 10 m AC siblings — fleet parts pool overlap. Sized for indoor factory installation, low-rise indoor construction, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1212AC that fit it to 12 m AC indoor scissor lift work: 11.85 m reach, mid-range load capacity, shared wheelbase with 10 m siblings, and AC drive.
11.85 m maximum working height, 9.85 m platform height, 320 kg rated load — supports a one-to-two operator crew with tools at full platform height. Configured for the 12 m height class typical of higher indoor construction, factory installation at mezzanine height, and warehouse work above standard pallet racks.
320 kg rated load sits between the 230 kg of the XG1008 series and the 450 kg of the XG1012 series. Higher reach (11.85 m vs 10 m) with rated load tuned for tools and light installation materials rather than heavy hardware.
1,877 mm wheelbase — shared with the XG1008AC and XG1012AC siblings. Parts pool overlap for fleet operators running multiple height classes. 2.3 m minimum turning radius outside. 25 percent grade ability. 3,000 kg total weight.
AC drive electric powertrain. Maximum driving speed 4 km/h stowed (faster transit than the 3.2 km/h XG1212HA sibling), 0.8 km/h raised. Suits jobsites with longer distances between workpoints inside larger facility footprints.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 11.85 |
| Max. platform height | m | 9.85 |
| Max. driving speed | km/h | 4 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 320 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 3000 |
