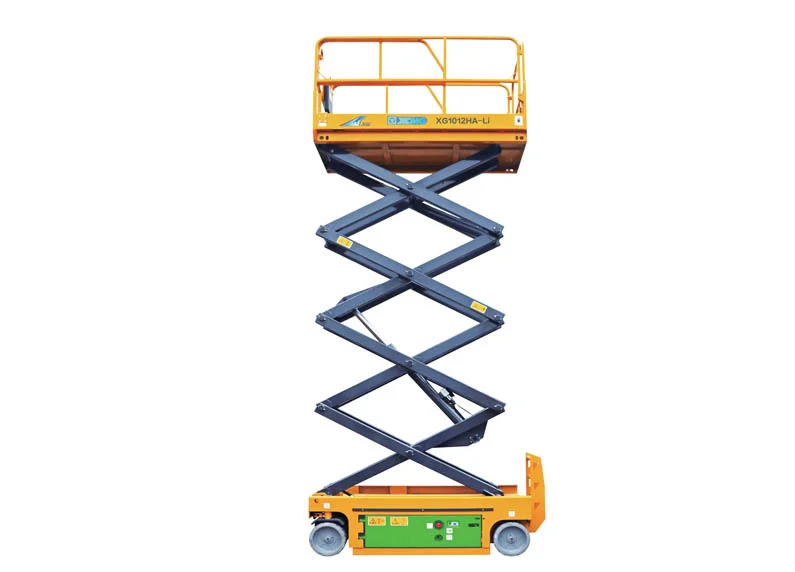

Hydraulic-Drive Scissor Lift — 10 m / 450 kg
Battery hydraulic-drive scissor lift. 10 m maximum working height, 8 m platform height, 450 kg rated load — hydraulic-drive counterpart to the AC XG1012AC. Hydraulic drive on a 4-wheel chassis. 2,380 kg total weight on a 1,877 mm wheelbase — 300 kg lighter than the XG1012AC (2,680 kg), the largest AC-vs-HA weight delta in the 10 m series. Maximum driving speed 3.5 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability.
The XCMG XG1012HA is a battery hydraulic-drive scissor lift with 10 m maximum working height, 8 m platform height, and 450 kg rated load. Hydraulic-drive counterpart to the AC XG1012AC at the same 10 m / 450 kg envelope.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3.5 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4 km/h) due to hydraulic drive characteristics. Total weight is 2,380 kg on a 1,877 mm wheelbase — 300 kg lighter than the XG1012AC (2,680 kg), the largest AC-vs-HA weight delta in the 10 m series. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 450 kg rated load matches the AC sibling. Choose XG1012HA when 450 kg load capacity is required at 10 m height with hydraulic drive — and the 300 kg lighter machine weight matters for transport or site floor loading constraints. Choose XG1012AC when faster stowed transit takes priority. Sized for indoor factory installation, retail fit-out with multi-person crews, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1012HA that fit it to 10 m heavy-load hydraulic-drive indoor scissor lift work: 450 kg rated load, 300 kg lighter than AC sibling, hydraulic drive, and indoor chassis.
Hydraulic drive system. 2,380 kg total weight — 300 kg lighter than the XG1012AC (2,680 kg), the largest AC-vs-HA weight delta in the 10 m series. Suits fleets where machine weight matters for transport on standard light-duty trailers or for indoor floor loading limits.
450 kg rated load — same as the AC XG1012AC sibling. Supports a two-operator crew with tools and installation materials at full platform height, or one operator with heavier installation hardware. 10 m maximum working height, 8 m platform height.
1,877 mm wheelbase, 2.3 m minimum turning radius outside. Ground clearance 20 mm (pothole protection support) / 100 mm (retracted) for flat-floor indoor work. 25 percent grade ability. 3.5 km/h stowed driving speed.
Same 10 m / 8 m height envelope and 450 kg rated load as the AC XG1012AC sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3.5 km/h vs 4 km/h on the AC sibling) but 300 kg lighter machine weight. Choose XG1012HA for transport-constrained fleets or hydraulic-standardized parts pools.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 10 |
| Max. platform height | m | 8 |
| Max. driving speed | km/h | 3.5 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 450 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 2380 |
