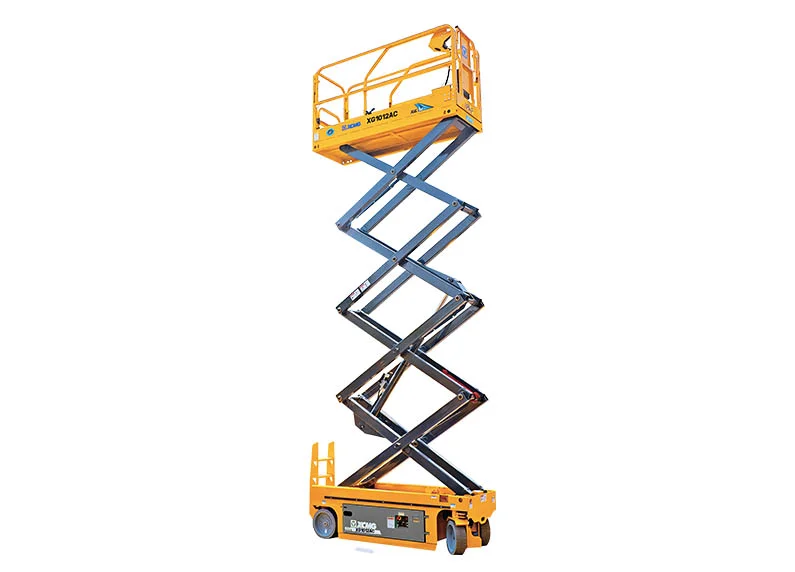

AC Electric Scissor Lift — 10 m / 450 kg
Battery-electric scissor lift. 10 m maximum working height, 8 m platform height, 450 kg rated load — same 10 m height envelope as the XG1008AC sibling but with nearly double the rated load capacity (96 percent more than 230 kg). AC drive electric on a 4-wheel chassis. 2,680 kg total weight on a 1,877 mm wheelbase, 420 kg heavier than the XG1008AC. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability.
The XCMG XG1012AC is a battery-electric scissor lift with 10 m maximum working height, 8 m platform height, and 450 kg rated load. AC drive on a 4-wheel indoor chassis — same 10 m height envelope as the XG1008AC sibling but with nearly double the rated load capacity.
AC drive electric. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Total weight is 2,680 kg on a 1,877 mm wheelbase — 420 kg heavier than the XG1008AC (2,260 kg), reflecting the heavier-duty scissor stack and platform. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 450 kg rated load (96 percent more than XG1008AC's 230 kg) supports a two-operator crew with tools and installation materials at full platform height. Choose XG1012AC when the project at 10 m height demands two-operator capacity, heavier installation materials, or both — and when the additional 420 kg machine weight fits site transport and floor loading constraints. Sized for indoor factory installation, retail fit-out with multi-person crews, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1012AC that fit it to 10 m heavy-load AC indoor scissor lift work: 450 kg rated load, same envelope as XG1008AC, AC drive, and indoor chassis.
450 kg rated load — nearly double the 230 kg of the XG1008AC sibling at the same 10 m height envelope. Supports a two-operator crew with tools and installation materials at full platform height, or one operator with heavier installation hardware (drywall, panels, fixtures).
10 m maximum working height, 8 m platform height. 2,680 kg total weight — 420 kg heavier than XG1008AC (2,260 kg) reflecting the heavier-duty scissor stack and platform required for the 450 kg rated load.
AC drive electric powertrain. Maximum driving speed 4 km/h stowed (faster transit than the 3.5 km/h XG1012HA sibling), 0.8 km/h raised. Suits jobsites with longer distances between workpoints inside larger facility footprints.
1,877 mm wheelbase, 2.3 m minimum turning radius outside. Ground clearance 20 mm (pothole protection support) / 100 mm (retracted) for flat-floor indoor work. 25 percent grade ability. Same wheelbase as XG1008AC and XG1212AC siblings for parts pool overlap.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 10 |
| Max. platform height | m | 8 |
| Max. driving speed | km/h | 4 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 450 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 2680 |
