Hydraulic-Drive Scissor Lift — 10 m / 230 kg
Battery hydraulic-drive scissor lift. 10 m maximum working height, 8 m platform height, 230 kg rated load — hydraulic-drive counterpart to the AC XG1008AC. Hydraulic drive on a 4-wheel chassis. 2,220 kg total weight on a 1,877 mm wheelbase — 40 kg lighter than the XG1008AC (2,260 kg). Maximum driving speed 3.5 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 100 mm (retracted).

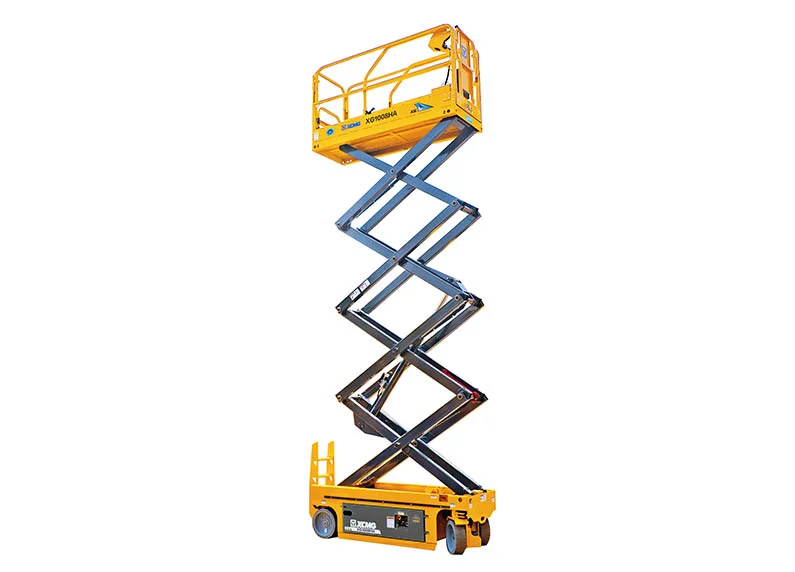

The XCMG XG1008HA is a battery hydraulic-drive scissor lift with 10 m maximum working height, 8 m platform height, and 230 kg rated load. Hydraulic-drive counterpart to the AC XG1008AC at the same 10 m height class.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3.5 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4 km/h) due to hydraulic drive characteristics. Total weight is 2,220 kg on a 1,877 mm wheelbase — 40 kg lighter than the XG1008AC (2,260 kg) due to the hydraulic powertrain rather than AC motors and inverters. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 230 kg rated load matches the AC sibling. Choose XG1008HA when the operator and fleet prefer hydraulic drive characteristics or hydraulic-focused parts pool standardization. Choose XG1008AC when faster stowed transit between workpoints matters more. Step up to XG1012HA for 450 kg rated load at the same 10 m height when the workpoint demands heavier load capacity. Sized for indoor maintenance, factory installation, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG1008HA that fit it to 10 m hydraulic-drive indoor scissor lift work: hydraulic drive, 10 m reach, shared scissor envelope with AC sibling, and step-up choice.
Hydraulic drive system. 2,220 kg total weight — 40 kg lighter than the XG1008AC (2,260 kg) due to the hydraulic powertrain rather than AC motors and inverters. Suits fleets preferring hydraulic drive characteristics or hydraulic-focused parts pool standardization.
10 m maximum working height, 8 m platform height, 230 kg rated load — same scissor envelope as the AC XG1008AC sibling. Supports a single operator with tools at full platform height. Configured for warehouse work at height, mid-rise indoor construction, and factory installation.
1,877 mm wheelbase, 2.3 m minimum turning radius outside. Ground clearance 20 mm (pothole protection support) / 100 mm (retracted) for flat-floor indoor work. 25 percent grade ability. 3.5 km/h stowed driving speed.
Same 10 m / 8 m height envelope and 230 kg rated load as the AC XG1008AC sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3.5 km/h vs 4 km/h on the AC sibling) but 40 kg lighter machine weight. Choose XG1008HA for fleets standardized on hydraulic drive; step up to XG1012HA for 450 kg rated load at the same 10 m height.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 10 |
| Max. platform height | m | 8 |
| Max. driving speed | km/h | 3.5 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 2.3 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 100 (retracted) |
| Max. lift capacity | kg | 230 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1877 |
| Total weight | kg | 2220 |
