Battery-electric scissor lift. 10 m maximum working height, 8 m platform height, 230 kg rated load. AC drive electric on a 4-wheel chassis. 2,260 kg total weight on a 1,877 mm wheelbase — 43 percent heavier than the 7.8 m XG0807ACW sibling (1,580 kg), reflecting the longer scissor stack. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Minimum turning radius 2.3 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 100 mm (retracted).

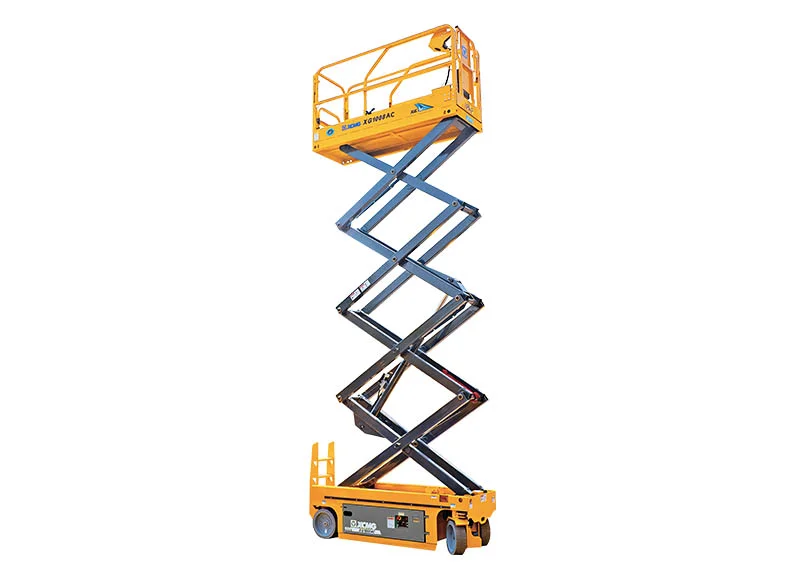

The XCMG XG1008AC is a battery-electric scissor lift with 10 m maximum working height, 8 m platform height, and 230 kg rated load. AC drive on a 4-wheel indoor chassis — 10 m height class with the same 230 kg rated load as the smaller XG0807ACW sibling.
AC drive electric. Maximum driving speed 4 km/h stowed / 0.8 km/h raised. Total weight is 2,260 kg on a 1,877 mm wheelbase — 43 percent heavier than the 7.8 m XG0807ACW (1,580 kg), reflecting the longer scissor stack. Minimum turning radius 2.3 m outside, ground clearance 20 mm (pothole protection support) / 100 mm (retracted), 25 percent grade ability. 230 kg rated load supports a single operator with tools at full platform height. Choose XG1008AC when the project needs 10 m height with the lighter 230 kg rated load — or step up to the heavier XG1012AC sibling (450 kg load at the same 10 m height, 2,680 kg total weight) when the workpoint demands two operators with tools or heavier installation materials. Sized for indoor construction, factory installation, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
