Hydraulic-Drive Scissor Lift — 7.8 m / 1,485 kg
Battery hydraulic-drive scissor lift. 7.8 m maximum working height, 5.8 m platform height, 230 kg rated load — hydraulic-drive counterpart to the AC XG0807ACW. Hydraulic drive on a 4-wheel chassis. 1,485 kg total weight on a 1,360 mm wheelbase — 95 kg lighter than the XG0807ACW (1,580 kg). Maximum driving speed 3 km/h stowed / 0.8 km/h raised. Minimum turning radius 1.75 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 71 mm (retracted).

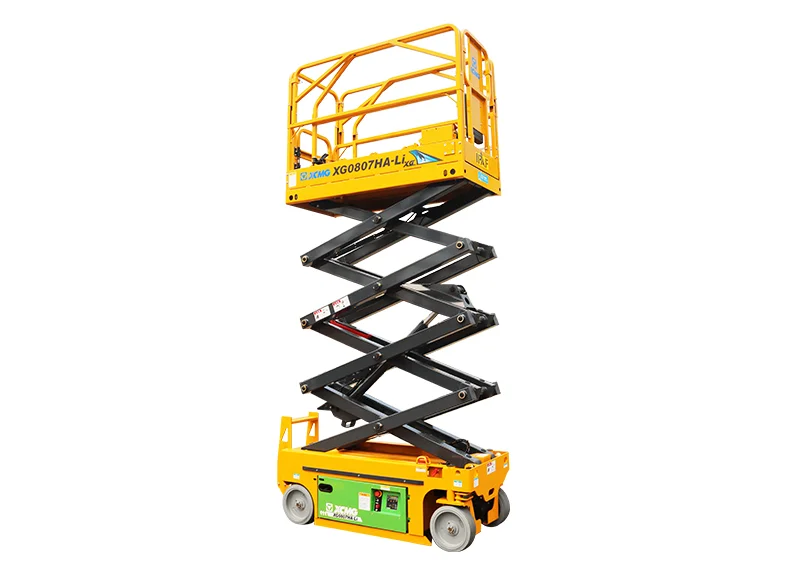

The XCMG XG0807HA is a battery hydraulic-drive scissor lift with 7.8 m maximum working height, 5.8 m platform height, and 230 kg rated load. Hydraulic drive counterpart to the AC XG0807ACW at the same 7.8 m height class — same scissor envelope, different drive system.
Hydraulic drive on a 4-wheel chassis. Maximum driving speed 3 km/h stowed / 0.8 km/h raised — slower stowed transit than the AC sibling (4.5 km/h) due to hydraulic drive characteristics. Total weight is 1,485 kg on a 1,360 mm wheelbase — 95 kg lighter than the XG0807ACW (1,580 kg) due to the hydraulic powertrain rather than AC motors and inverters. Minimum turning radius 1.75 m outside, ground clearance 20 mm (pothole protection support) / 71 mm (retracted), 25 percent grade ability. 230 kg rated load matches the AC sibling. Choose XG0807HA when the operator and fleet prefer hydraulic drive characteristics, slightly lighter machine weight, or hydraulic-focused parts pool standardization. Choose XG0807ACW when faster stowed transit between workpoints matters more. Sized for low-rise indoor maintenance, retail fit-out, and rental fleet duty. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG0807HA that fit it to 7.8 m hydraulic-drive indoor scissor lift work: hydraulic drive, lighter weight than AC sibling, tight turning, and shared scissor envelope.
Hydraulic drive system. 1,485 kg total weight — 95 kg lighter than the XG0807ACW (1,580 kg) due to the hydraulic powertrain rather than AC motors and inverters. Suits fleets preferring hydraulic drive characteristics or hydraulic-focused parts pool standardization.
7.8 m maximum working height, 5.8 m platform height, 230 kg rated load — same scissor envelope as the AC XG0807ACW sibling. Supports a single operator with tools at full platform height. Configured for low-rise indoor work: retail fit-out, low-ceiling factory installation, indoor maintenance.
Minimum turning radius 1.75 m outside — sized for tight indoor maneuvering between obstacles, fixtures, and retail shelving. 25 percent grade ability. Ground clearance 20 mm (pothole protection support) / 71 mm (retracted) for flat-floor indoor work. 1,360 mm wheelbase.
Same 7.8 m / 5.8 m height envelope and 230 kg rated load as the AC XG0807ACW sibling but with hydraulic drive in place of AC motors. Slower stowed transit (3 km/h vs 4.5 km/h on the AC sibling) but 95 kg lighter machine weight. Choose XG0807HA for fleets standardized on hydraulic drive; choose XG0807ACW when faster transit between workpoints matters.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 7.8 |
| Max. platform height | m | 5.8 |
| Max. driving speed | km/h | 3 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 1.75 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 71 (retracted) |
| Max. lift capacity | kg | 230 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1360 |
| Total weight | kg | 1485 |
