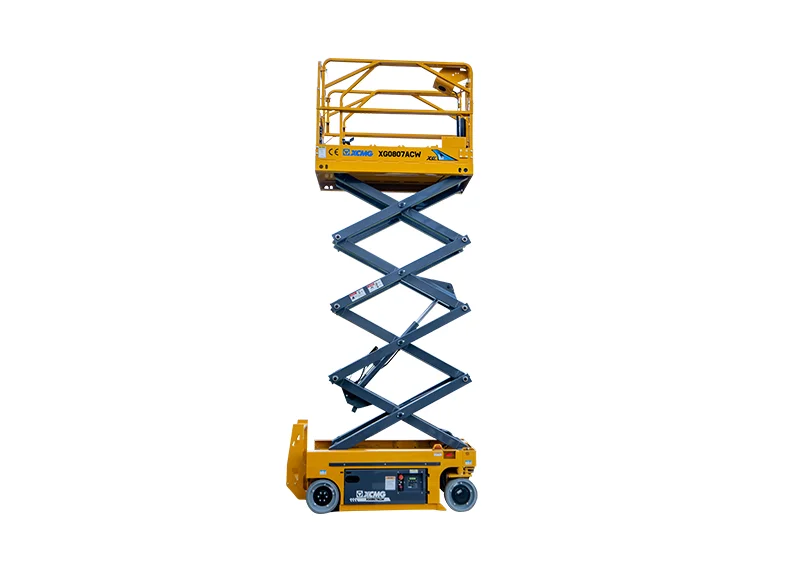

AC Electric Scissor Lift — 7.8 m / 1,580 kg
Battery-electric scissor lift. 7.8 m maximum working height, 5.8 m platform height, 230 kg rated load — the smallest in the XCMG indoor scissor lift range. AC drive electric on a 4-wheel chassis. 1,580 kg total weight on a 1,360 mm wheelbase. Maximum driving speed 4.5 km/h stowed / 0.8 km/h raised. Minimum turning radius 1.75 m outside, 25 percent grade ability, ground clearance 20 mm (pothole protection) / 71 mm (retracted).
The XCMG XG0807ACW is a battery-electric scissor lift with 7.8 m maximum working height, 5.8 m platform height, and 230 kg rated load. The smallest in the XCMG indoor scissor lift range — sized for low-rise indoor work where a 7.8 m height class is enough.
AC drive electric on a 4-wheel chassis. Maximum driving speed 4.5 km/h stowed / 0.8 km/h raised. Total weight is 1,580 kg on a 1,360 mm wheelbase — the lightest in the indoor range, suitable for tight indoor corridors, retail spaces, and low-ceiling factory floors. Minimum turning radius 1.75 m outside, ground clearance 20 mm (pothole protection support) / 71 mm (retracted), 25 percent grade ability. 230 kg rated load supports a single operator with tools at full platform height. Choose XG0807ACW when the project needs 7.8 m height, low operating weight, and AC drive — for indoor maintenance, retail fit-out, low-rise warehouse, and light installation work where the heavier 10 m and 12 m siblings exceed site weight or footprint constraints. Genuine XCMG parts and authorized service via me-equipment.com.
Four aspects of the XG0807ACW that fit it to 7.8 m AC indoor scissor lift work: smallest in the indoor range, AC drive, tight turning, and lightweight chassis.
1,580 kg total weight — the lightest in the XCMG indoor scissor lift range. 1,360 mm wheelbase. Sized for tight indoor corridors, retail spaces, low-ceiling factory floors, and indoor maintenance work where heavier 10 m and 12 m siblings exceed site weight or footprint constraints.
7.8 m maximum working height, 5.8 m platform height, 230 kg rated load — supports a single operator with tools at full platform height. Configured for low-rise indoor work: retail fit-out, low-ceiling factory installation, indoor maintenance, and rental fleet duty.
AC drive electric powertrain. Maximum driving speed 4.5 km/h stowed (faster transit than the 3 km/h XG0807HA sibling), 0.8 km/h raised. Suits jobsites with longer distances between workpoints inside larger facility footprints.
Minimum turning radius 1.75 m outside — sized for tight indoor maneuvering between obstacles, fixtures, and retail shelving. 25 percent grade ability. Ground clearance 20 mm (pothole protection support) / 71 mm (retracted) for flat-floor indoor work.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 7.8 |
| Max. platform height | m | 5.8 |
| Max. driving speed | km/h | 4.5 (stowed) / 0.8 (raised) |
| Min. turning radius | m | 1.75 (outside) |
| Min. ground clearance | mm | 20 (pothole protection support) / 71 (retracted) |
| Max. lift capacity | kg | 230 |
| Max. grade ability | % | 25 |
| Wheelbase | mm | 1360 |
| Total weight | kg | 1580 |
Tell us your spec, budget, and destination port. You'll get a matching shortlist with photos, working videos, and pricing within 24 hours.
