7.7 m XCMG Scissor Lift — DC Battery Self-Propelled
7.7 m maximum working height DC battery-powered scissor lift. 5.7 m platform height, 240 kg lift capacity. DC battery — zero exhaust emissions, 350 kg lighter than the AC sibling XG0807AC (1,200 kg vs 1,550 kg). 4 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius. Suited for retail and supermarket fit-out, facility maintenance, electrical contracting, and indoor rental work where weight and emissions matter.

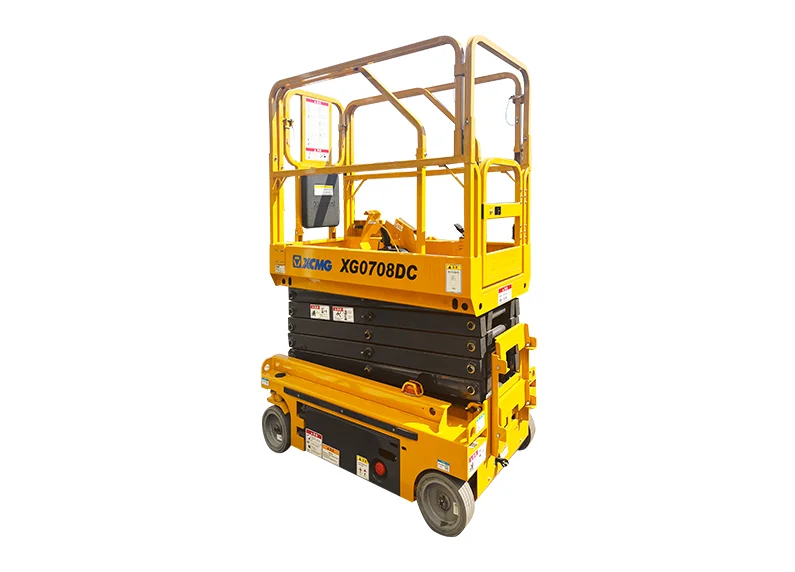

The XCMG XG0708DC is a DC battery-powered self-propelled scissor lift with 7.7 m maximum working height (5.7 m platform height) and 240 kg lift capacity — sized for indoor work where battery operation, zero emissions, and lower deadweight matter more than continuous-duty run time.
The XG0708DC sits as the DC battery sibling to the AC-drive XG0807AC (7.8 m / 230 kg / 1,550 kg) in XCMG's 7-meter scissor lift class. The DC platform runs 350 kg lighter (1,200 kg vs 1,550 kg) — easier on building floor loads, easier to relocate between sites, and zero exhaust emissions for indoor and confined-space work. 4 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase keeps it tighter than the AC sibling. 0.45 m inside turning radius and 1.6 m outside turning radius work for narrow aisles. 24 mm pothole protection clearance and 58 mm retracted clearance. Suited for retail and supermarket fit-out, facility maintenance, light electrical contracting, and indoor rental work.
Five aspects of the XG0708DC that position it as the lightweight DC sibling to the AC XG0807AC: 7-meter envelope, DC battery system, lighter weight, narrower turn, and parts support.
7.7 m maximum working height and 5.7 m maximum platform height — same working envelope class as the AC sibling XG0807AC (7.8 m / 5.8 m). 240 kg rated lift capacity supports 2-person crew plus tools. Fits between the 6-meter XG0608DC and the 10-meter AS-series in the XCMG lineup.
DC battery system — zero exhaust emissions for indoor work, confined spaces, ventilation-restricted environments. Trade-off vs AC drive XG0807AC is shorter continuous run time per charge cycle but 350 kg less deadweight (1,200 kg vs 1,550 kg) — easier on building floor loads, lower-cost transport between sites, faster relocation.
1,200 kg total weight — 23 percent lighter than the AC sibling XG0807AC (1,550 kg). Easier to lift onto upper floors, fits inside passenger elevators on many commercial buildings, and reduces over-the-road transport class. 1,130 mm wheelbase — 230 mm shorter than the AC sibling.
0.45 m inside turning radius and 1.6 m outside turning radius keep the machine workable in narrow-aisle environments — supermarket aisles, warehouse racking, retail fit-out work between shelf rows. 24 mm pothole protection ground clearance, 58 mm retracted clearance.
Step down to the 6-meter DC sibling XG0608DC (240 kg / 900 kg) for tighter envelopes, or step across to the AC sibling XG0807AC for continuous-duty work. Pair with the wider-platform XG0807ACW-AS or step up to the 10-meter XG1008AC-AS or XG1012AC-AS. Genuine XCMG parts and service via me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 7.7 |
| Max. platform height | m | 5.7 |
| Max. driving speed | km/h | 4 (stowed) / 0.5 (raised) |
| Min. turning radius (inside) | m | 0.45 |
| Min. turning radius (outside) | m | 1.6 |
| Min. ground clearance | mm | 24 (pothole protection) / 58 (retraction) |
| Max. lift capacity | kg | 240 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1130 |
| Total weight | kg | 1200 |
