6.6 m XCMG Scissor Lift — Hydraulic-Actuated Entry Tier
6.6 m maximum working height hydraulic-actuated scissor lift. 4.6 m platform height, 200 kg lift capacity. 870 kg total weight — lightest in the XCMG 6-meter class, 30 kg lighter than the DC sibling XG0608DC (900 kg). 3 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius. Suited for facility maintenance crews, light electrical work, and rental operators with infrequent-use customers.

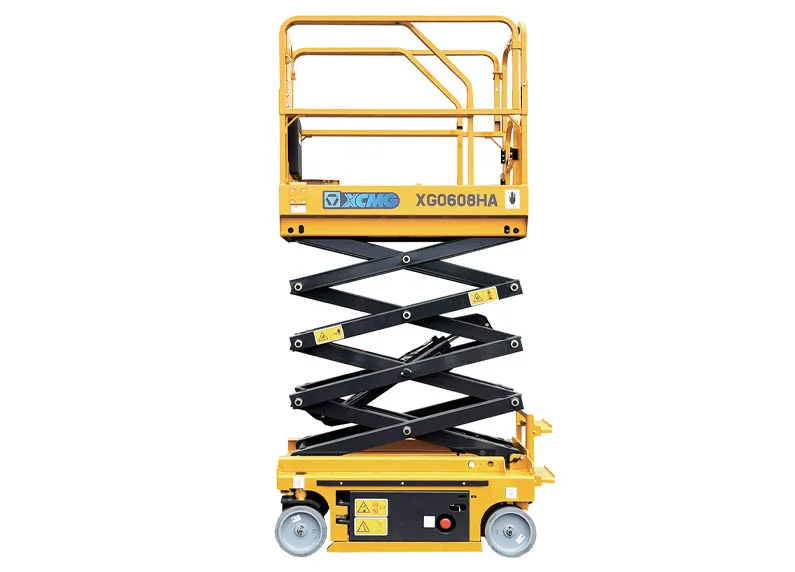

The XCMG XG0608HA is a hydraulic-actuated push-around scissor lift with 6.6 m maximum working height (4.6 m platform height) and 200 kg lift capacity — the entry-tier hydraulic option for indoor low-level access where battery cost and electric drive complexity aren't justified.
The XG0608HA sits in the same 6-meter class as the DC-powered sibling XG0608DC (6.6 m / 240 kg / 900 kg) but with hydraulic actuation rather than full DC drive. 870 kg total weight — the lightest in the 6-meter class. 3 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase with 0.45 m inside turning radius and 1.6 m outside turning radius. 33 mm pothole protection clearance, 61 mm retracted clearance. Pairs with the 5.5-meter sibling XG0508HA (5.5 m / 200 kg / 830 kg) for fleet operators standardizing on the hydraulic platform across height tiers. Suited for facility maintenance crews, light electrical work, and rental operators serving customers with infrequent low-rise access needs.
Five aspects of the XG0608HA that fit it to entry-tier 6-meter scissor lift work: working envelope, hydraulic actuation, lightest-in-class weight, narrow-aisle turn, and sibling positioning.
6.6 m maximum working height and 4.6 m maximum platform height — sized for indoor and outdoor work in the 4-to-5 meter platform range. 200 kg rated lift capacity supports 1-person crew plus tools or 2-person crew with light loads. Sits one tier below the 7-meter class siblings (XG0708DC / XG0807AC).
Hydraulic-actuated lift system (HA suffix) rather than full DC battery drive of the XG0608DC sibling. Lower initial cost than full DC platforms for buyers with infrequent-use cases — facility maintenance crews using the lift periodically, light contractors doing occasional access work, low-utilization rental fleets.
870 kg total weight — the lightest in the XCMG 6-meter scissor lift class, 30 kg lighter than the DC sibling XG0608DC (900 kg). Easier upper-floor access in buildings without freight elevators, lower transport class, simpler relocation between work zones.
0.45 m inside turning radius and 1.6 m outside turning radius work for narrow-aisle environments — warehouse racking, retail fit-out between shelf rows, factory floors with tight equipment spacing. 1,130 mm wheelbase, 33 mm pothole protection ground clearance, 61 mm retracted clearance.
Pair with the 5.5-meter sibling XG0508HA (5.5 m / 200 kg / 830 kg) for fleet operators standardizing on the hydraulic-actuated platform across height tiers. Step up to the DC sibling XG0608DC (240 kg capacity, 900 kg) for higher capacity or to the 7-meter XG0708DC for taller envelope. Genuine XCMG parts and service via me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 6.6 |
| Max. platform height | m | 4.6 |
| Max. driving speed | km/h | 3 (stowed) / 0.5 (raised) |
| Min. turning radius (inside) | m | 0.45 |
| Min. turning radius (outside) | m | 1.6 |
| Min. ground clearance | mm | 33 (pothole protection) / 61 (retraction) |
| Max. lift capacity | kg | 200 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1130 |
| Total weight | kg | 870 |
