6.6 m XCMG Scissor Lift — DC Battery Self-Propelled
6.6 m maximum working height DC battery-powered scissor lift. 4.6 m platform height, 240 kg lift capacity. DC battery — zero exhaust emissions for indoor work. 4 km/h stowed driving speed (33 percent faster than the hydraulic sibling XG0608HA at 3 km/h), 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius. 900 kg total weight. Suited for retail and supermarket fit-out, factory installation, electrical contracting, and indoor rental work.

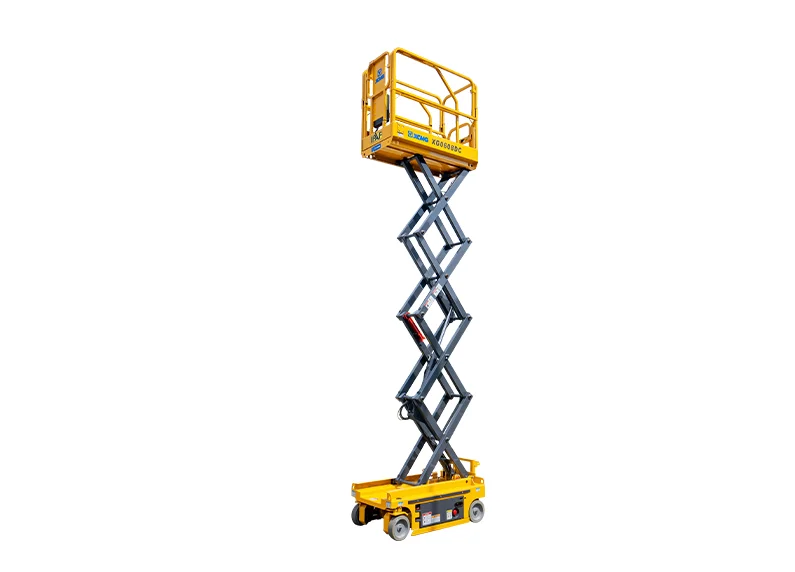

The XCMG XG0608DC is a DC battery-powered self-propelled scissor lift with 6.6 m maximum working height (4.6 m platform height) and 240 kg lift capacity — sized for indoor low-to-mid level work where electric drive and zero emissions matter.
The XG0608DC sits as the DC self-propelled sibling to the hydraulic XG0608HA in the XCMG 6-meter scissor lift class. Same 6.6 m / 4.6 m working envelope but 40 kg more lift capacity (240 kg vs 200 kg), 30 kg more deadweight (900 kg vs 870 kg), and faster transit speed (4 km/h stowed vs 3 km/h). DC battery — zero exhaust emissions for indoor work. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius — same chassis footprint as the HA sibling and the 7-meter XG0708DC for parts pool sharing. 24 mm pothole protection clearance, 65 mm retracted clearance. Suited for retail and supermarket fit-out, factory installation, electrical contracting, and rental fleet work serving indoor customers.
Five aspects of the XG0608DC that position it as the self-propelled DC variant in the 6-meter class: envelope, DC drive, transit speed advantage vs HA sibling, shared chassis, and parts compatibility.
6.6 m maximum working height and 4.6 m maximum platform height — same envelope as the hydraulic sibling XG0608HA but 40 kg more rated capacity (240 kg vs 200 kg). Sized for 2-person crew work in the 4-to-5 meter platform range. Sits between the 5.5-meter XG0508HA and the 7-meter XG0708DC.
DC battery system supports zero-exhaust indoor operation in ventilation-restricted environments — supermarkets, retail interiors, warehouse storage areas, food and pharmaceutical facilities. Trade-off vs the HA sibling XG0608HA is 30 kg additional deadweight (900 kg vs 870 kg) but faster transit speed and full electric drive control.
4 km/h maximum driving speed stowed (vs 3 km/h on the hydraulic XG0608HA), 0.5 km/h elevated. Faster inter-task transit cuts crew time between work zones in large indoor environments. 25 percent grade ability supports ramp work and outdoor slope movement.
1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius — same chassis dimensions as the HA sibling XG0608HA and the 7-meter sibling XG0708DC. Common chassis components across these three siblings reduce inventory carrying cost for fleet operators running mixed-height XCMG rosters.
Step down to the hydraulic sibling XG0608HA for lower initial cost. Step up to the 7-meter DC sibling XG0708DC for taller envelope. Cross-over to the 10-meter AS-series (XG1008AC-AS / XG1012AC-AS) when working envelope exceeds 7 meters. Genuine XCMG parts and service via me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 6.6 |
| Max. platform height | m | 4.6 |
| Max. driving speed | km/h | 4 (stowed) / 0.5 (raised) |
| Min. turning radius (inside) | m | 0.45 |
| Min. turning radius (outside) | m | 1.6 |
| Min. ground clearance | mm | 24 (pothole protection) / 65 (retraction) |
| Max. lift capacity | kg | 240 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1130 |
| Total weight | kg | 900 |
