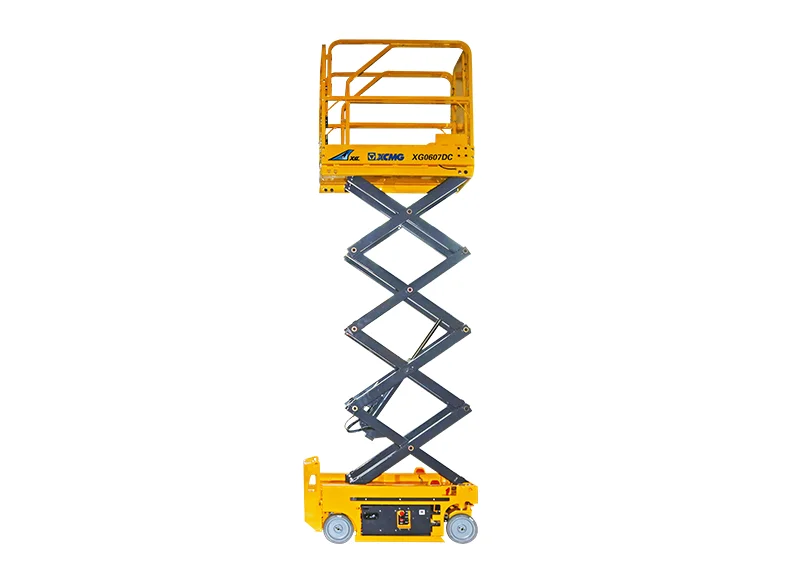

5.9 m XCMG Scissor Lift — AS Series Compact DC
5.9 m maximum working height DC battery-powered scissor lift — the AS-series version of the base XG0607DC. 3.9 m platform height, 240 kg lift capacity. Same compact 1,030 mm wheelbase chassis as the base unit. 900 kg total weight, 0.4 m inside turning radius, 1.75 m outside turning radius (0.15 m wider than the base XG0607DC). 4 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 65 mm minimum ground clearance. Suited for fleet operators standardizing on the AS series who need a compact 6-meter entry tier alongside larger 10/12-meter AS siblings.
The XCMG XG0607DC-AS is a DC battery-powered self-propelled scissor lift with 5.9 m maximum working height (3.9 m platform height) and 240 kg lift capacity — the AS-series version of the base XG0607DC, aligning the smallest DC self-propelled unit with the AS-platform fleet specification.
The XG0607DC-AS shares the working envelope and capacity of the base XG0607DC exactly (5.9 m / 3.9 m / 240 kg / 900 kg) but carries the AS-series chassis specification matching the larger 10/12-meter AS siblings. 4 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,030 mm wheelbase — same compact chassis as the base XG0607DC. 0.4 m inside turning radius, 1.75 m outside turning radius — 0.15 m wider outside turn than the base unit. 65 mm minimum ground clearance. Suited for fleet operators standardizing on the AS series who want a 6-meter compact entry tier with AS-platform identification — useful for parts inventory and rental fleet specification consistency.
Five aspects of the XG0607DC-AS that position it as the AS-series compact 6-meter entry tier: envelope match with base XG0607DC, DC battery, compact wheelbase, AS-series alignment, and fleet pairing.
5.9 m maximum working height and 3.9 m maximum platform height — same envelope as the base sibling XG0607DC. 240 kg rated lift capacity supports 2-person crew plus tools. Sized for low-rise indoor work where 4-meter platform reach is sufficient.
DC battery system supports zero-exhaust indoor operation — same powertrain as the base XG0607DC and the broader XCMG DC scissor lift family (XG0608DC, XG0708DC). Suited for retail fit-out, supermarket interiors, warehouse maintenance, food and pharmaceutical facilities.
1,030 mm wheelbase — same compact chassis as the base XG0607DC and 100 mm shorter than the 6.6-meter siblings. 0.4 m inside turning radius supports very narrow-aisle work. 1.75 m outside turning radius is 0.15 m wider than the base XG0607DC, reflecting the AS chassis profile.
'AS' suffix aligns chassis specification with the 10-meter siblings XG1008AC-AS / XG1012AC-AS and the 12-meter XG1212AC-AS. Useful for fleet operators or rental companies running an AS-standardized roster where the 6-meter entry tier must carry the AS specification for parts inventory and rental fleet identification.
Choose XG0607DC-AS when the fleet is AS-standardized and the compact 6-meter envelope is needed. Choose the base XG0607DC when AS alignment doesn't matter (and outside turn matters more — 1.55 m vs 1.75 m). Step up to the AS-series 7-meter XG0807ACW-AS, 10-meter XG1008AC-AS / XG1012AC-AS, or 12-meter XG1212AC-AS for taller envelopes. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 5.9 |
| Max. platform height | m | 3.9 |
| Max. driving speed | km/h | 4 (stowed) / 0.5 (raised) |
| Min. turning radius (inside) | m | 0.4 |
| Min. turning radius (outside) | m | 1.75 |
| Min. ground clearance | mm | 65 |
| Max. lift capacity | kg | 240 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1030 |
| Total weight | kg | 900 |
