5.5 m XCMG Scissor Lift — Entry-Tier Hydraulic
5.5 m maximum working height hydraulic-actuated scissor lift. 3.5 m platform height, 200 kg lift capacity. Entry tier in the XCMG scissor lift family. 830 kg total weight — the lightest unit in the XCMG scissor lift lineup, 40 kg below the 6.6-meter sibling XG0608HA. 3 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius. Suited for low-rise facility maintenance, light electrical and HVAC work, retail interior touch-up, and rental fleets.

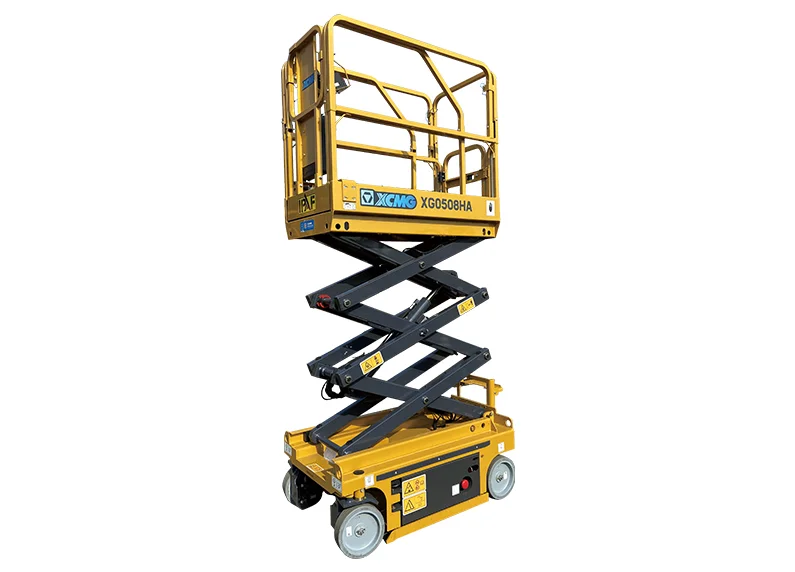

The XCMG XG0508HA is a hydraulic-actuated push-around scissor lift with 5.5 m maximum working height (3.5 m platform height) and 200 kg lift capacity — the entry-tier height and lightest unit in the XCMG scissor lift lineup, sized for the lowest-tier indoor access work.
The XG0508HA sits at the base of the XCMG scissor lift family — paired with the 6.6-meter hydraulic sibling XG0608HA (6.6 m / 200 kg / 870 kg) for fleet operators standardizing on the hydraulic platform. 830 kg total weight — the lightest XCMG scissor lift, 40 kg below the XG0608HA. 3 km/h stowed driving speed, 0.5 km/h raised. 25 percent grade ability. 1,130 mm wheelbase, 0.45 m inside turning radius, 1.6 m outside turning radius. 33 mm pothole protection clearance, 61 mm retracted clearance. Suited for low-rise facility maintenance, light electrical and HVAC work, retail interior touch-up, and rental fleet operators serving customers with 3-meter platform reach needs.
Five aspects of the XG0508HA that position it as the entry tier in the XCMG scissor lift family: lowest envelope, hydraulic actuation, lightest weight, narrow-aisle turn, and sibling pairing.
5.5 m maximum working height and 3.5 m maximum platform height — the lowest envelope in the XCMG scissor lift lineup. 200 kg rated lift capacity supports 1-person crew plus tools or 2 lightweight workers. Suited for low-rise indoor work where larger siblings are unnecessary and weight matters.
Hydraulic-actuated lift system (HA suffix) — lower initial cost than DC battery siblings. Suited for buyers with infrequent-use cases: facility maintenance crews using the lift periodically rather than daily, light contractors with occasional 3-meter platform access needs, low-utilization rental operators.
830 kg total weight — the lightest model in the XCMG scissor lift lineup. 40 kg below the 6.6-meter sibling XG0608HA (870 kg), 70 kg below the DC siblings (900 kg). Easier transport between sites, fits inside standard passenger elevators on many commercial buildings, lower over-the-road class.
0.45 m inside turning radius and 1.6 m outside turning radius work in narrow-aisle environments — supermarket aisles, warehouse racking rows, retail fit-out between shelf displays, factory floors with tight equipment spacing. 1,130 mm wheelbase, 33 mm pothole protection clearance, 61 mm retracted clearance.
Pair with the 6.6-meter hydraulic sibling XG0608HA for fleet operators standardizing on the hydraulic platform across height tiers. Step up to the DC siblings XG0607DC (5.9 m) or XG0608DC (6.6 m) for self-propelled drive at the same envelope. Cross-over to 10-meter AC-AS siblings when the project exceeds 6-meter envelope. Genuine XCMG parts via me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | m | 5.5 |
| Max. platform height | m | 3.5 |
| Max. driving speed | km/h | 3 (stowed) / 0.5 (raised) |
| Min. turning radius (inside) | m | 0.45 |
| Min. turning radius (outside) | m | 1.6 |
| Min. ground clearance | mm | 33 (pothole protection) / 61 (retraction) |
| Max. lift capacity | kg | 200 |
| Max. grade ability | % | 25 |
| Wheel base | mm | 1130 |
| Total weight | kg | 830 |
