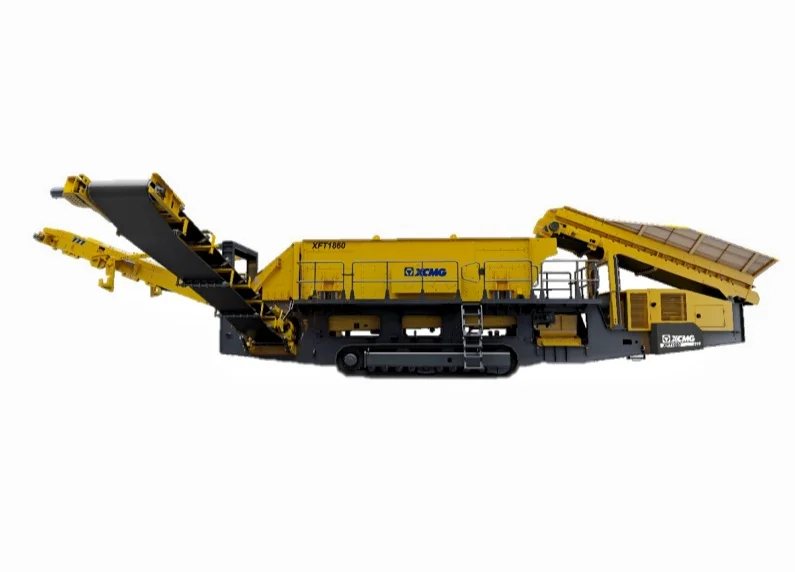

Tracked movable screening station with 44,300 kg curb weight and 150–600 t/h disposal capacity. Three-shaft elliptical screener with three screen layers sized for medium and fine aggregate sorting. Diesel-electric hybrid drive — runs off onboard diesel for off-grid sites or external mains power at stationary set-ups. 8° grade ability, 0.6/1.2 km/h two-gear travel for on-site repositioning. Working dimensions 19,800 × 16,400 × 4,650 mm. Transport dimensions 19,700 × 3,490 × 3,720 mm. Fits aggregate, sand-and-gravel and recycled construction-waste lines.
XFT1860E is a tracked movable screening station with a 44,300 kg curb weight and 150–600 t/h disposal capacity. It runs a three-shaft elliptical screener with three screen layers, sized for medium and fine aggregate sorting rather than primary scalping. Power is a diesel-electric hybrid configuration — the unit can run off the onboard diesel for off-grid sites or external power for stationary set-ups, which keeps operating cost down on long campaigns at fixed sites with mains supply.
Working dimensions are 19,800 × 16,400 × 4,650 mm. Transport dimensions fold down to 19,700 × 3,490 × 3,720 mm for road moves between sites. Max travel speed is 0.6 / 1.2 km/h (two gears) and grade ability is 8°, sufficient for repositioning on quarry and recycling pads but not for self-transit between projects — a low-loader is needed for any meaningful distance.
Typical work fits aggregate production lines downstream of crushing, sand-and-gravel grading, and screening of recycled construction waste where a three-layer cut into four product fractions is the production target.
