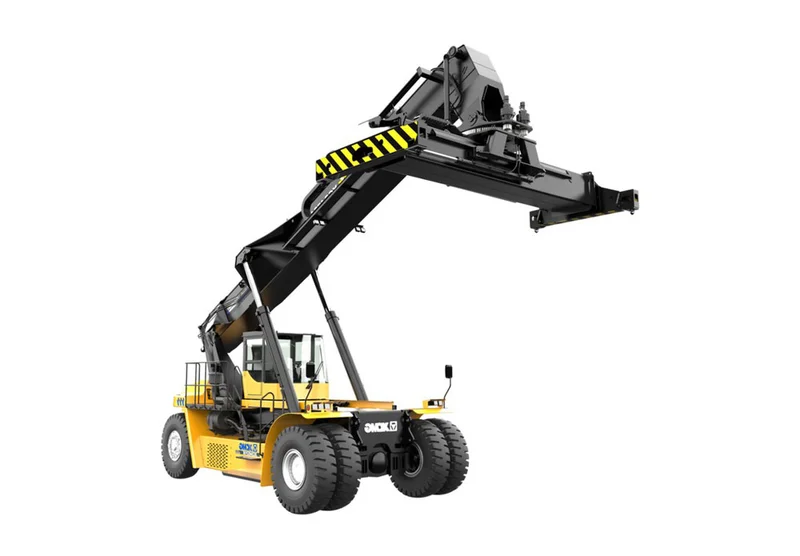

XCMG XCS4545K Container Reach Stacker

8,000 mm wheelbase with overall length 13,270 mm — the longest in the XCMG 45-ton reach stacker series. 2,000 mm longer wheelbase than the XCS4531K base (6,000 mm), 1,500 mm longer than the XCS4535K (6,500 mm), and 1,000 mm longer than the XCS4541K (7,000 mm). Maximum stability margin at the laden 45-ton working load envelope for large-terminal yard operations.

13,600 mm lifting height — 1,500 mm lower than the 15,100 mm of the XCS4531K, XCS4535K, and XCS4541K siblings. Lift envelope tuned for terminals where stack stability and reach take priority over peak lift height. 6 high × 3 deep stacking maintained — the trade is at peak lift altitude, not at stack count or depth.

Drive engine specifiable as Cummins or Volvo at 250 rpm rated — 15 rpm lower than the XCS4531K/XCS4535K/XCS4541K siblings (265 rpm), tuned to the longer wheelbase and lower-lift duty cycle. Both engine brands have global service networks across major port and inland container markets — fleet operators can standardize on an existing engine-brand maintenance contract.

Three emission certification configurations selectable per destination: EU3/Tier 3 for less-regulated export markets, EU4/Tier 4F for North American jurisdictions, EU5 for current European certification. A single platform serves multiple market regulatory tiers — fewer SKUs for distributors covering mixed regulatory territories.

Spreader components, hydraulic cylinders, structural assemblies, DANA transmission parts, and Kessler axle parts share core part numbers across the XCMG container reach stacker range (XCS1009K, XCS4531E, XCS4531K, XCS4535K, XCS4541K). Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
