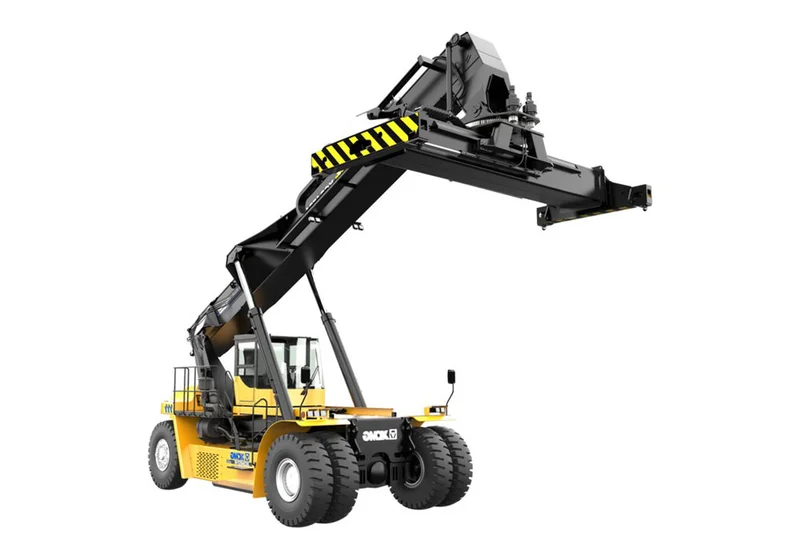

XCMG XCS4541K Container Reach Stacker

7,000 mm wheelbase with overall length 12,343 mm — 1,000 mm longer than the XCS4531K base (6,000 mm) and 500 mm shorter than the XCS4545K (8,000 mm). The added wheelbase improves stability margin at the laden 45-ton working load envelope and supports deeper container row reach work, while the 15,100 mm lift height matches the shorter-wheelbase XCS4531K and XCS4535K siblings.

Drive engine specifiable as Cummins or Volvo (both 265 rpm rated). Lets fleet operators standardize on an existing engine-brand maintenance contract — terminals running Cummins-dominant or Volvo-dominant fleets keep parts inventory and tech training consistent across the XCMG reach stacker fleet. Both engine brands have global service networks across major port and inland container markets.

Three emission certification configurations selectable per destination: EU3/Tier 3 for less-regulated export markets, EU4/Tier 4F for North American jurisdictions, EU5 for current European certification. A single platform serves multiple market regulatory tiers — fewer SKUs for distributors covering mixed regulatory territories.

The XCMG 45-ton reach stacker series gives terminal planners four wheelbase steps: XCS4531K (6,000 mm), XCS4535K (6,500 mm), XCS4541K (7,000 mm), XCS4545K (8,000 mm). Choose XCS4541K when the duty cycle calls for a long wheelbase for laden stability and deep stack reach but the yard isn't long enough for the XCS4545K's 13,270 mm overall length.

Spreader components, hydraulic cylinders, structural assemblies, DANA transmission parts, and Kessler axle parts share core part numbers across the XCMG container reach stacker range (XCS1009K, XCS4531E, XCS4531K, XCS4535K, XCS4545K). Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
