45-ton battery-electric container reach stacker. 15,100 mm lifting height, 6 high × 3 deep stacking, 6,000 mm wheelbase. Lvkon permanent magnet synchronous motor, DANA transmission, Kessler axle. CATL battery with three pack-size options — 423 kWh, 507 kWh, or 595 kWh — sized to shift length, duty cycle, and on-site charging capacity. Overall dimensions 11,340 × 6,053 × 4,670 mm. Electric sibling to the diesel XCS4531K — same 45-ton lift, same 6,000 mm wheelbase, same 15,100 mm lift height, zero on-site exhaust.

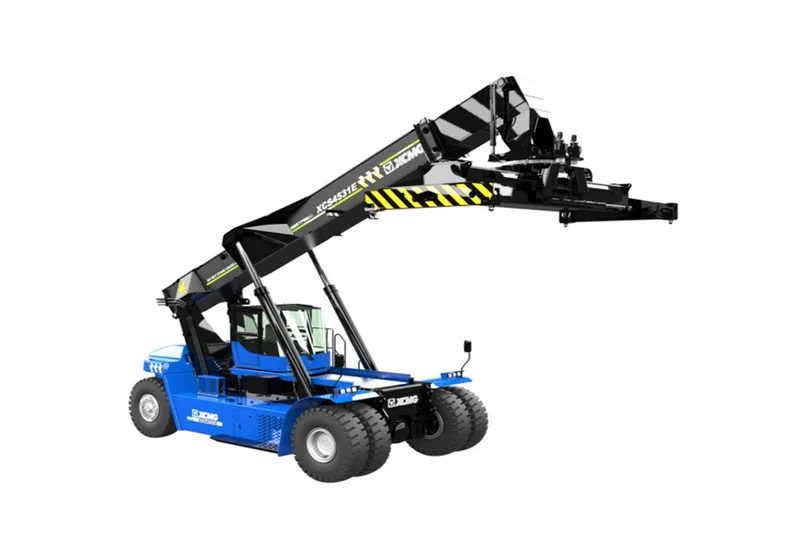

The XCMG XCS4531E is a 45-ton battery-electric container reach stacker for terminals targeting zero on-site exhaust emissions. Built for container loading, unloading, stacking, and horizontal transport at docks, small and medium railway stations, and warehouses.
Lift capacity is 45 tons — laden container class. Lifting height reaches 15,100 mm with stacking 6 high and 3 deep. Wheelbase 6,000 mm, overall dimensions 11,340 × 6,053 × 4,670 mm. The driveline pairs a Lvkon permanent magnet synchronous motor with a DANA transmission and Kessler axle. Battery is CATL — three pack-size options: 423 kWh, 507 kWh, or 595 kWh. Specify pack size at order to match shift length, duty cycle, and on-site charging capacity.
The XCS4531E is the electric sibling to the diesel XCS4531K — same 45-ton lift, same 6,000 mm wheelbase, same 15,100 mm lift height. Choose XCS4531E for terminals with electric infrastructure, urban port operations targeting zero on-site exhaust, or jurisdictions tightening diesel emission rules. Choose XCS4531K when diesel is the right answer for the duty cycle and charging access. Parts and service through me-equipment.com's authorized XCMG dealer channel.
