45-ton laden container reach stacker. 15,100 mm lifting height, 6 high × 3 deep stacking, 6,500 mm wheelbase — 500 mm longer than the XCS4531K base. Cummins or Volvo drive engine (265 rpm rated), DANA transmission, Kessler axle. Three emission certification options — EU3/Tier 3, EU4/Tier 4F, and EU5. Overall dimensions 11,742 × 6,053 × 4,782 mm. Mid step in the XCMG 45-ton reach stacker wheelbase ladder — between the 6,000 mm XCS4531K and the 7,000 mm XCS4541K / 8,000 mm XCS4545K siblings.

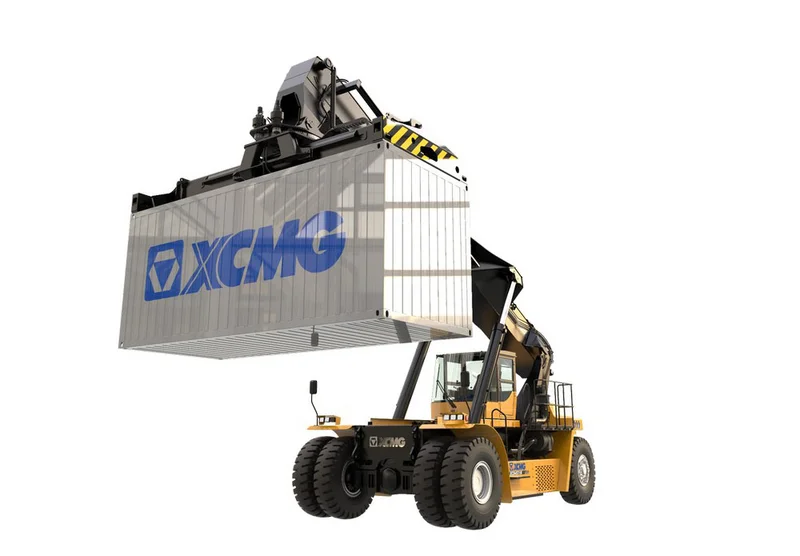

The XCMG XCS4535K is a 45-ton laden container reach stacker built for container loading, unloading, stacking, and horizontal transport at docks, small and medium railway stations, and warehouses.
Lift capacity is 45 tons. Lifting height reaches 15,100 mm with stacking 6 high and 3 deep. Wheelbase 6,500 mm — 500 mm longer than the XCS4531K base model. Overall dimensions 11,742 × 6,053 × 4,782 mm. Drive engine is Cummins or Volvo at 265 rpm rated, paired with DANA transmission and Kessler axle. Emission compliance covers EU3/Tier 3, EU4/Tier 4F, and EU5.
The XCS4535K sits between the XCS4531K (6,000 mm wheelbase, 11,340 mm length) and the XCS4541K (7,000 mm wheelbase, 12,343 mm length) in the XCMG 45-ton series. The 6,500 mm wheelbase gives slightly more reach and stability margin than the XCS4531K base while staying shorter than the XCS4541K and XCS4545K. Choose XCS4535K when the duty cycle calls for a step up in wheelbase but the yard layout doesn't accommodate the 7,000 mm or 8,000 mm wheelbase siblings. Parts and service through me-equipment.com's authorized XCMG dealer channel.
