45-ton laden container reach stacker. 15,100 mm lifting height, 6 high × 3 deep stacking, 6,000 mm wheelbase. Cummins or Volvo drive engine (265 rpm rated), DANA transmission, Kessler axle. Three emission certification options — EU3/Tier 3, EU4/Tier 4F, and EU5 — selectable per destination market regulation. Overall dimensions 11,340 × 6,053 × 4,670 mm. Entry point in the XCMG 45-ton reach stacker series — the XCS4535K, XCS4541K, and XCS4545K siblings extend wheelbase to 6,500, 7,000, and 8,000 mm for longer reach work.

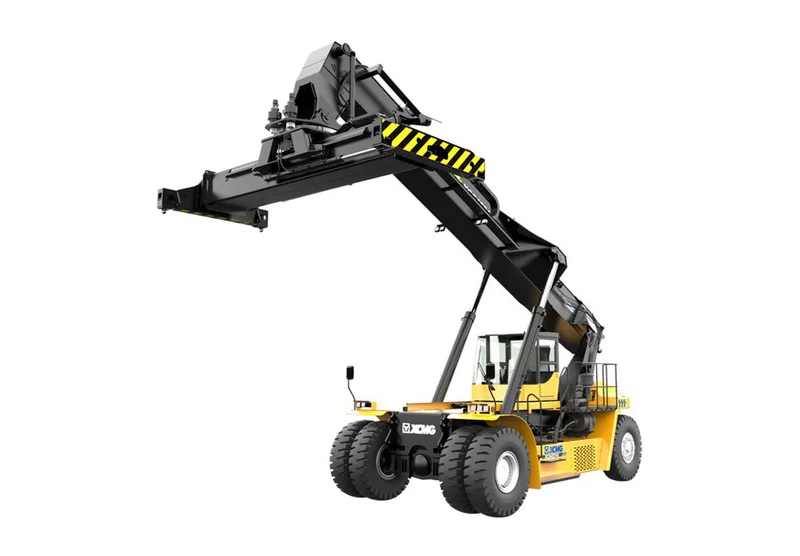

The XCMG XCS4531K is a 45-ton laden container reach stacker built for container loading, unloading, stacking, and horizontal transport at docks, small and medium railway stations, and warehouses.
Lift capacity is 45 tons — laden container class. Lifting height reaches 15,100 mm with stacking 6 high and 3 deep. Wheelbase 6,000 mm, overall dimensions 11,340 × 6,053 × 4,670 mm. The driveline pairs a Cummins or Volvo engine (265 rpm rated) with a DANA transmission and Kessler axle. Emission compliance covers EU3/Tier 3, EU4/Tier 4F, and EU5 — three certification options selectable per destination market regulation.
The XCS4531K is the entry point in the XCMG 45-ton reach stacker series. Sister models XCS4535K (6,500 mm wheelbase), XCS4541K (7,000 mm wheelbase), and XCS4545K (8,000 mm wheelbase) extend the wheelbase progressively for longer overall length and deeper stack reach work. The XCS4531E electric sibling shares lift envelope with battery-electric driveline. Choose XCS4531K for diesel terminals where 6,000 mm wheelbase is the right footprint for the yard layout. Parts and service through me-equipment.com's authorized XCMG dealer channel.
