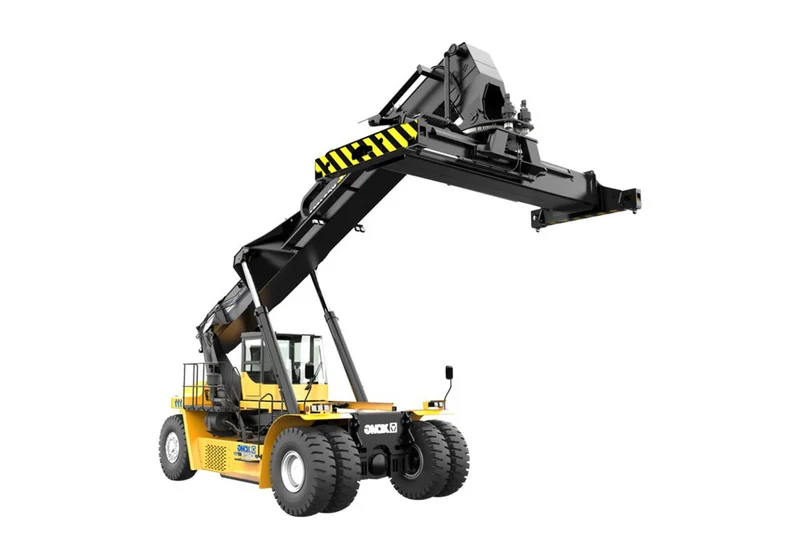

XCMG XCS1009K Container Reach Stacker

10 ton maximum lift capacity — sized for empty container loading, unloading, stacking, and horizontal transport rather than laden container work. 16,200 mm lifting height handles 6-high empty container stacks. 3-deep stacking reaches the third container row in. Choose XCS1009K when the load profile is dominated by empty containers and the laden 45-ton XCS4531K class is over-specified.

Cummins engine available in three emission certification configurations: EU3/Tier 3, EU4/Tier 4F, and EU5. Lets a single platform serve projects with different regulatory constraints — EU3/Tier 3 for less-regulated export markets, Tier 4F for North American jurisdictions, EU5 for current European certification. Specify emission tier at order to match the destination market.

DANA TE14 transmission and Kessler axle. DANA and Kessler are established driveline component suppliers in the container reach stacker and heavy material handling segment — global parts and service network overlap with other reach stacker fleets running DANA/Kessler components. Lowers parts inventory and service complexity for terminal operators running mixed-brand handler rosters.

5,000 mm wheelbase with overall length 10,850 mm — the most compact in the XCMG reach stacker range (vs 6,000 mm wheelbase on XCS4531K and 8,000 mm on XCS4545K). Compact footprint fits empty container work at small and medium railway stations and warehouse yards where aisle width is constrained. 4,000 mm overall height for in-warehouse handling envelopes.

Spreader components, hydraulic cylinders, structural assemblies, and accessories share core part numbers across the XCMG container reach stacker range (XCS4531E, XCS4531K, XCS4535K, XCS4541K, XCS4545K) — lower inventory carrying cost for terminal operators running mixed-tonnage XCMG handler rosters. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
