Top-of-range high-speed stationary modular stabilized soil mixing plant. 800 t/h rated productivity, 294 kW total installed power — the largest in the XCMG XC range, 75 kW max single motor. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent, water ±1 percent. Allowable aggregate size under 60 mm. 60 × 14 m modular footprint — the largest in the XCMG range — with frequency-controlled speed adjustment. 36 percent higher installed power than standard XC800.

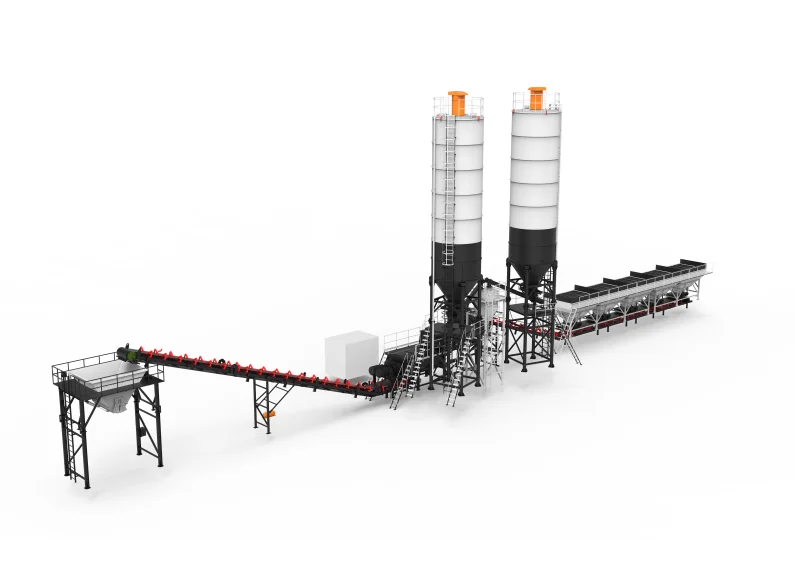

The XCMG XC800S is a stationary modular high-speed stabilized soil mixing plant with an 800 t/h rated productivity and 294 kW total installed power. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC800S produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards. Modular combination installation layout, 60 × 14 m site footprint — the largest in the XCMG stabilized soil mixing plant range — frequency-controlled speed adjustment. Max single motor 75 kW. The XC800S is the high-speed ("S") variant for the 800 t/h class and the top plant in the XCMG range — 294 kW installed power versus 216 kW on standard XC800 (36 percent higher) and 179 kW on XC800C compact (64 percent higher). Standard XC800 already runs ±0.8 percent powder accuracy, so XC800S adds installed power and cycle speed rather than tighter accuracy. Choose XC800S for the top throughput tier where the 60 × 14 m pad and 294 kW supply fit the site.
