Stationary modular stabilized soil mixing plant. 800 t/h rated productivity, 216 kW total installed power, 55 kW max single motor. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent, water ±1 percent. Allowable aggregate size under 60 mm. 53 × 14 m modular combination footprint with frequency-controlled speed adjustment. Top of the standard XC plant range — already runs the tighter ±0.8 percent powder accuracy at this size. Compact sibling XC800C (600-800 t/h, 179 kW) and high-speed sibling XC800S (800 t/h, 294 kW, 60 × 14 m).

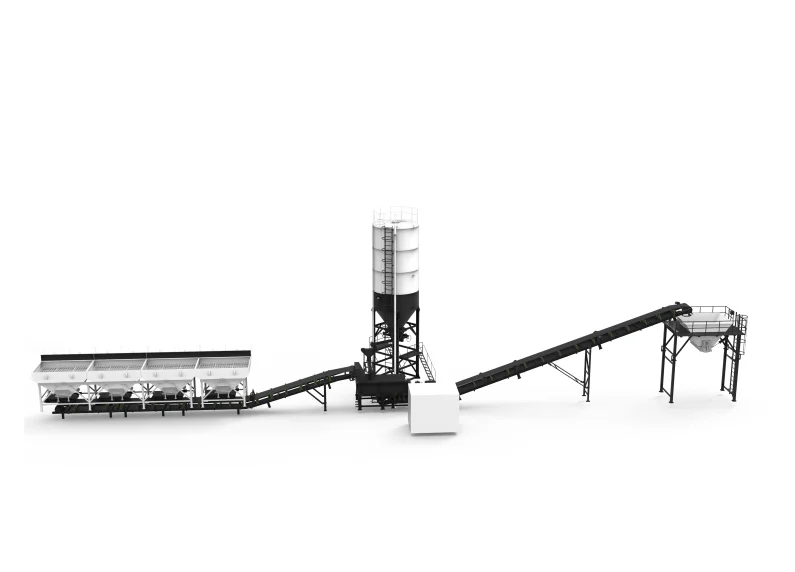

The XCMG XC800 is a stationary modular stabilized soil mixing plant with an 800 t/h rated productivity and 216 kW total installed power. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC800 produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards, and similar road and infrastructure projects. Modular combination installation layout, 53 × 14 m site footprint, frequency-controlled speed adjustment. Max single motor 55 kW. The 800 t/h productivity puts XC800 at the top of the standard XC plant range — above XC700 (700 t/h, 159 kW) and matched by XC800C compact (600–800 t/h, 179 kW) and XC800S high-speed (800 t/h, 294 kW). Notably, the standard XC800 already runs the tighter ±0.8 percent powder accuracy that the XC___S high-speed plants offer in smaller sizes. Choose XC800 for top-tier 800 t/h base course work where the 53 × 14 m pad fits.
