High-speed stationary modular stabilized soil mixing plant. 700 t/h rated productivity, 240 kW total installed power, 90 kW max single motor. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent (tighter than the ±1 percent on the standard XC700), water ±1 percent. Allowable aggregate size under 60 mm. 55 × 14 m modular combination footprint with frequency-controlled speed adjustment. 51 percent higher installed power than standard XC700 (159 kW). For projects demanding tight powder batching accuracy at 700 t/h.

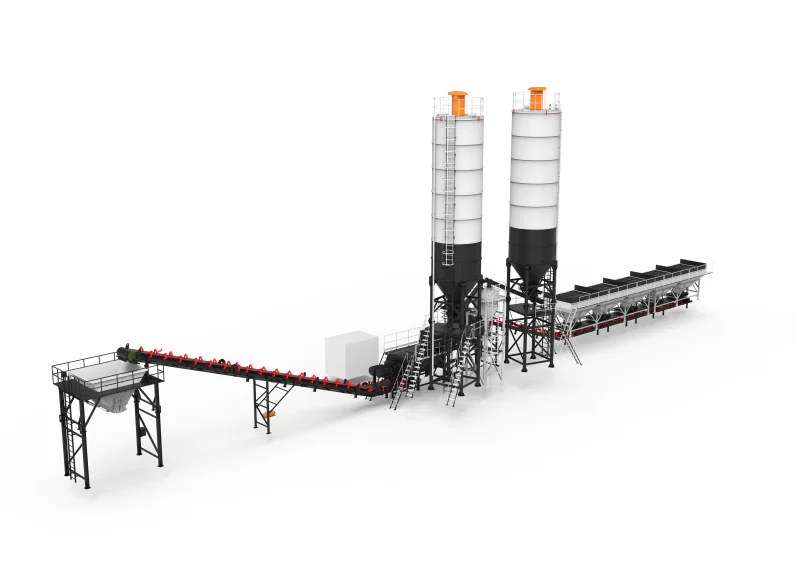

The XCMG XC700S is a stationary modular high-speed stabilized soil mixing plant with a 700 t/h rated productivity and 240 kW total installed power. Batching accuracy: aggregate ±1.5 percent, powder ±0.8 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC700S produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards. Modular combination installation layout, 55 × 14 m site footprint, frequency-controlled speed adjustment. Max single motor 90 kW. The XC700S is the high-speed ("S") variant for the 700 t/h class — 240 kW installed power versus 159 kW on standard XC700 (51 percent higher). Tighter ±0.8 percent powder batching accuracy versus ±1 percent on the standard XC700. Larger 55 × 14 m footprint vs 51 × 14 m on XC700 (8 percent larger). Choose XC700S when the project demands tight powder batching accuracy at the 700 t/h throughput and the 55 × 14 m pad fits the site.
