High-speed compact stationary modular stabilized soil mixing plant. 500-600 t/h rated productivity, 189 kW total installed power, 75 kW max single motor. Batching accuracy: aggregate ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm. 52 × 14 m modular footprint (same as XC600S high-speed) with frequency-controlled speed adjustment. SC variant slots between XC600C compact (131 kW, 48 × 14 m) and XC600S high-speed (216 kW, ±0.8% powder, 52 × 14 m).

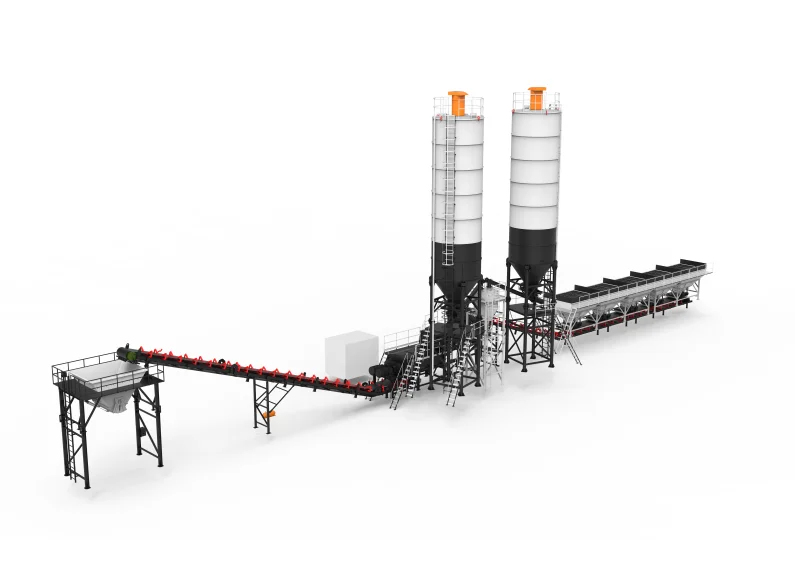

The XCMG XC600SC is a stationary modular high-speed compact stabilized soil mixing plant with a 500–600 t/h rated productivity and 189 kW total installed power. Batching accuracy: aggregate ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC600SC produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards. Modular combination installation layout, 52 × 14 m site footprint (same as XC600S), frequency-controlled speed adjustment. Max single motor 75 kW. The XC600SC is the high-speed compact (SC) variant — 500–600 t/h range and 189 kW installed power versus 600 t/h fixed and 216 kW on XC600S (13 percent lower power). Powder accuracy stays at ±1 percent (vs ±0.8 percent on XC600S). Choose XC600SC when the project sits in the 500–600 t/h range, needs the high-speed plant's larger 52 × 14 m footprint and higher installed power than the standard XC600C, but does not require the tightest ±0.8% powder accuracy of the XC600S.
