Stationary modular stabilized soil mixing plant. 600 t/h rated productivity, 156 kW total installed power, 90 kW max single motor. Aggregate batching accuracy ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm. 48 × 14 m modular combination footprint with frequency-controlled speed adjustment. Standard sibling of XC600C (compact, 131 kW) and XC600S (high-speed, 216 kW, 52 × 14 m). For expressway, highway, airport, dam base work.

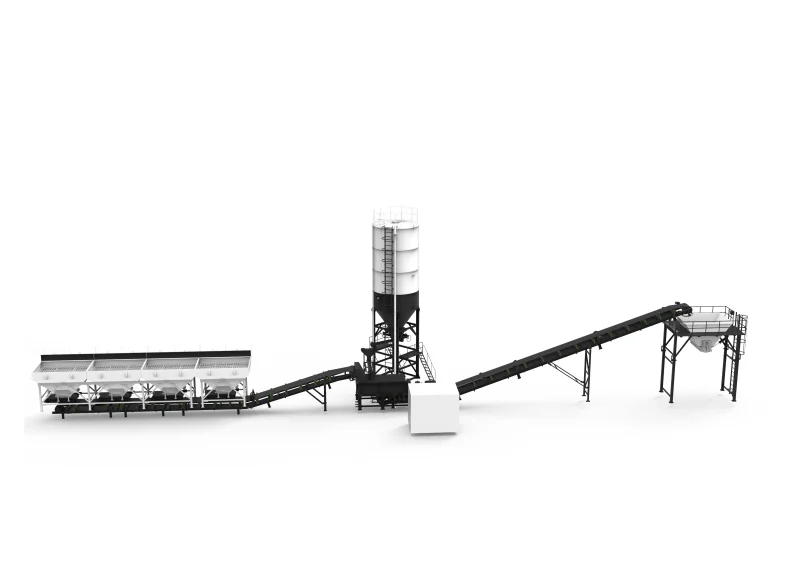

The XCMG XC600 is a stationary modular stabilized soil mixing plant with a 600 t/h rated productivity and 156 kW total installed power. Aggregate batching accuracy ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC600 produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards, and similar road and infrastructure projects. Modular combination installation layout, 48 × 14 m site footprint, frequency-controlled speed adjustment. Max single motor 90 kW. The 600 t/h productivity puts XC600 in the upper-mid tier of the XCMG mixing plant range — above XC500 (500 t/h) and below XC700 (700 t/h) and XC800 (800 t/h). Same 48 × 14 m footprint as XC400, XC500, XC600C, XC800, XC800C. XC600 sibling positioning: XC600C is the compact variant (500–600 t/h, 131 kW) on the same footprint; XC600S is the high-speed variant (600 t/h, 216 kW, ±0.8% powder accuracy, 52 × 14 m larger footprint). Choose XC600 for standard 600 t/h work where the 48 × 14 m pad is set.
