500 t/h XCMG Stabilized Soil Mixing Plant — Modular
Stationary modular stabilized soil mixing plant. 500 t/h rated productivity, 135 kW total installed power, 75 kW max single motor. Aggregate batching accuracy ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm. 48 × 14 m modular combination footprint with frequency-controlled speed adjustment. Produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil at all grades for expressway, classified highway, airport, dam, and freight yard projects.

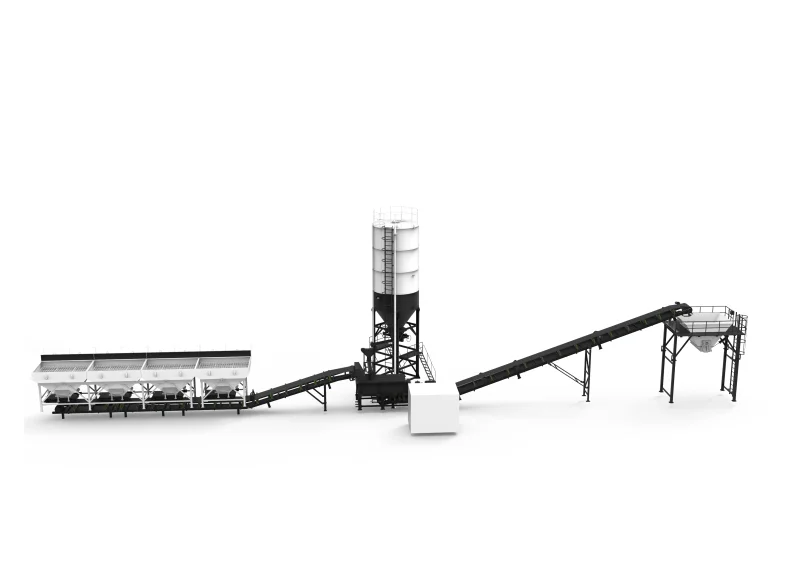

The XCMG XC500 is a stationary modular stabilized soil mixing plant with a 500 t/h rated productivity and 135 kW total installed power. Aggregate batching accuracy ±1.5 percent, powder ±1 percent, water ±1 percent. Allowable aggregate size under 60 mm.
The XC500 produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway, classified highway, municipal administration paths, airports, dams, freight yards, and similar road and infrastructure projects. Modular combination installation layout, 48 × 14 m site footprint, frequency-controlled speed adjustment. Max single motor 75 kW. The 500 t/h productivity puts XC500 in the middle tier of the XCMG mixing plant range — between XC400 (400 t/h, 107 kW) and XC600 (600 t/h, 156 kW). Same 48 × 14 m footprint as XC400, XC600, XC600C, XC800, XC800C — common pad design lets contractors swap or upgrade plant capacity on a single prepared site. Choose XC500 when daily mix demand sits around 500 t/h and the project warrants 135 kW installed power.
Five aspects of the XC500 that fit it to 500 t/h soil stabilization plant work: middle-tier positioning in the XC range, batching accuracy spec, 48 × 14 m common modular pad, application fit, and parts support through XCMG's road construction machinery group.
500 t/h rated productivity. Middle tier of the XCMG stabilized soil mixing plant range — between XC400 (400 t/h, 107 kW) and XC600 (600 t/h, 156 kW). 135 kW total installed power, 75 kW max single motor. Sized for highway and infrastructure projects with mid-range daily mix demand.
Aggregate batching accuracy ±1.5 percent, powder ±1 percent, water ±1 percent — same accuracy spec as the XC300, XC400, XC600, XC700, XC800, XC600C, and XC800C standard plants. The XC___S high-speed variants tighten powder to ±0.8 percent. Allowable aggregate size under 60 mm.
48 × 14 m modular combination footprint — same pad size as XC400, XC600, XC600C, XC800, XC800C. Common pad design lets contractors swap or upgrade plant capacity on a single prepared site without re-pouring foundations. Modular container assembly reduces foundation work compared with monolithic plants. Frequency-controlled speed adjustment on the mixer drive.
Produces cement-stabilized soil, lime-stabilized soil, industrial waste residue stabilized soil, and other mixtures at all grades. Specified for expressway and classified highway base course work, municipal administration paths, airport pavement base, dam construction, freight yard pavement, and similar road and infrastructure projects where base layer stabilization is required.
Shares parts pool and service network with the XC300, XC400, XC600, XC700, XC800 plants and the XC___C compact and XC___S high-speed variants. Electric motors, batching scales, control PLCs, and conveyor components align across the XCMG soil mixing plant fleet — lower inventory carrying cost for contractors operating multiple XC-series plants. Genuine XCMG parts and service through me-equipment.com.
| Parameter | Unit | Value |
|---|---|---|
| Rated productivity | t/h | 500 |
| Max. handling capacity (Aggregate) | % | ±1.5 |
| Max. handling capacity (Powder) | % | ±1 |
| Max. handling capacity (Water) | % | ±1 |
| Total installed power | kW | 135 |
| Max. single motor power | kW | 75 |
| Site area | m² | 48×14 |
| Allowable aggregate size | mm | Less than 60 |
| Installation layout | - | Modular combination |
| Speed adjustment | - | Frequency control |
