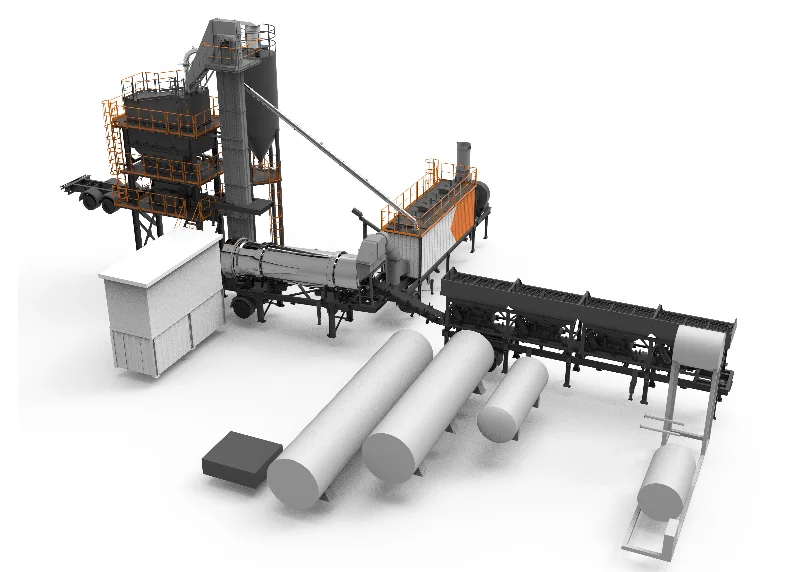

120 t/h modular mobile asphalt mixing plant from XCMG. 1,600 kg per batch nominal mixing capacity, 285 kW required operating power, 75 kW maximum single-unit power. Modular main tower, drum, dust removal, and cold material units that can be relocated between project camps. 1,131 m² (39 m × 29 m) minimum installation area — 51 percent larger setup footprint than the stationary XAP125 sibling, the trade-off for mobile modular configuration. Mobile variant of the stationary XAP125 — choose XAP125M for road construction projects with multiple paving segments where plant relocation avoids long-haul asphalt transport.
The XCMG XAP125M is the modular mobile variant of the XAP125 stationary asphalt mixing plant — same 120 t/h rated productivity and 1,600 kg per batch nominal mixing capacity, but configured as transportable units: main tower, drum, dust removal, and cold material modules that can be relocated between project camps.
Required operating power is 285 kW with a 75 kW maximum single-unit draw — matches the stationary XAP125 because the mechanical configuration is identical. Minimum installation area is 1,131 m² (39 m × 29 m), 51 percent larger than the stationary XAP125 (750 m²) — the trade-off for modular mobility is a bigger setup footprint to accommodate the wheeled module layout. The plant produces standard and modified asphalt mixture from one configuration. Suited to road construction projects with multiple paving segments separated by long distances where relocating the plant between segments avoids the haul cost of trucking asphalt over those distances. Choose XAP125M over the stationary XAP125 when project geography requires plant moves; choose XAP125 when the project camp is fixed.
