320 t/h integral asphalt plant-mix hot recycling equipment from XCMG. 160 t/h recycled material heating capacity (50 percent recycled-to-total ratio), 5,300 kg per batch nominal mixing, 1,176 kW required operating power, ≥220 kW maximum single-unit power. 1,800 m² (45 m × 40 m) minimum installation area — 12 percent smaller footprint than the XARP245H sibling despite 33 percent higher throughput, denser plant layout. Integrates raw material plant and hot recycling plant in one configuration. Sits between the XARP245H (240 t/h) and XARP405H (400 t/h) in the XCMG XARP integral lineup.

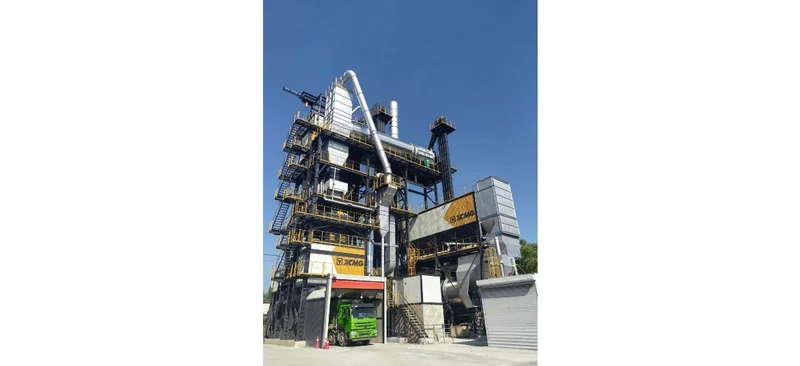

The XCMG XARP325H is an integral asphalt plant-mix hot recycling equipment unit rated at 320 t/h with 160 t/h recycled material heating capacity (50 percent recycled-to-total ratio) and 5,300 kg per batch nominal mixing capacity. Combines raw material and hot recycling functions in one plant.
Required operating power is 1,176 kW with a maximum single-unit power of ≥220 kW. Minimum installation area is 1,800 m² (45 m × 40 m). Produces standard asphalt mixture, modified asphalt mixture, and recycled mixes — suited to highways, classified roads, municipal roads, airports, dams, and freight yards. Sits between the XARP245H (240 t/h) and XARP405H (400 t/h) in the XCMG XARP integral lineup. The 1,800 m² footprint is 12 percent smaller than the XARP245H (2,050 m²) despite 33 percent higher throughput — denser plant layout. Choose XARP325H when the project asphalt demand sits in the 320 t/h class and integrated recycled processing is the design intent rather than adding a separate recycling unit later.
