Large compact tracked paver with EU Stage V emission compliance. Two screed configurations: E3060ATV (9 m max width) or E2550ATV (8 m max width). 450 mm maximum paving thickness, 900 t/h theoretical productivity, 25 m/min working speed. B6.7 (173 kW). 15 t hopper, 22.5–25.2 t total weight (E3060ATV) or 22.8–24.5 t (E2550ATV). Full hydraulic drive, microcomputer control, left and right independent drive, material level sensing control, electronic automatic leveling, vibratory compaction, variable-frequency electric heating.

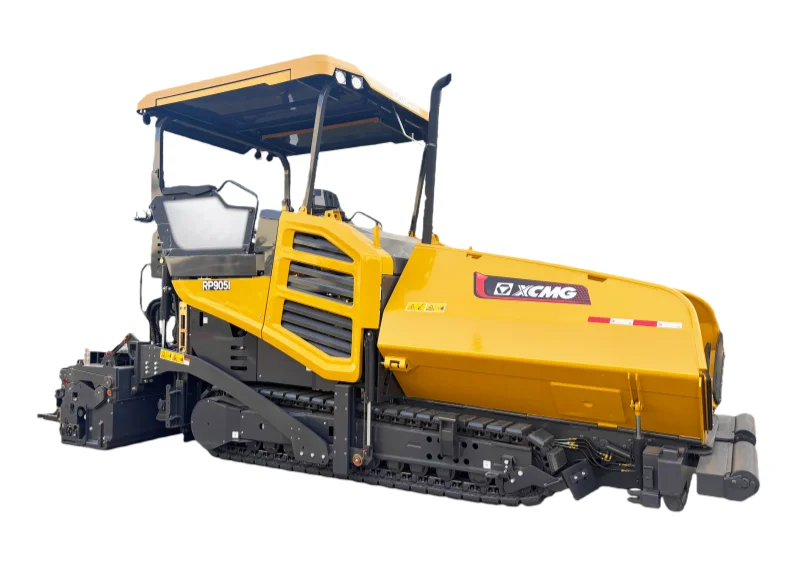

The XCMG RP905i is a large compact tracked paver in the 9 m maximum width class, configured for EU Stage V emission markets. Two screed options: E3060ATV (9 m max width, 22.5–25.2 t total weight) or E2550ATV (8 m max width, 22.8–24.5 t). Maximum paving thickness 450 mm. Theoretical productivity 900 t/h.
Powered by the B6.7 (173 kW) — EU Stage V emission compliance, which is the distinguishing factor vs the sibling RP905 / RP905S (Cummins QSB6.7, EU Stage III). Working speed 25 m/min, travel speed 4 km/h. Hopper capacity 15 t. Transport dimensions 6,982 × 3,000 × 3,080 mm (E3060ATV) or 6,982 × 2,550 × 3,080 mm (E2550ATV).
Standard intelligent control suite: full hydraulic drive, microcomputer control, left and right independent drive, material level sensing control, electronic automatic leveling, vibratory compaction, variable-frequency electric heating. Decision pick over RP905 / RP905S: choose RP905i when project emission requirements specify EU Stage V — for European jurisdictions or markets adopting Stage V mandates. Otherwise the EU Stage III RP905S delivers the same width and thickness class at a different powertrain cost point.
