19 t XCMG 5 Series Motor Grader — Cummins QSB6.7 / 194 kW
19,000 kg, 194 kW motor grader in the XCMG 5 Series. Cummins QSB6.7 at 194 kW — the high-output tune of the same engine used on the 164 kW GR2205T and 178 kW GR2405T siblings. 9,448 mm overall length, 3,965 mm × 610 mm moldboard (full 5 Series blade length), 7.8 m minimum turning radius. Six forward gears with 53 km/h top speed, traction force at least 99 kN (f=0.75). 25 percent maximum gradeability, EU Stage III emission. Choose GR2605T when the project needs full 3,965 mm spread per pass at 19-ton class.

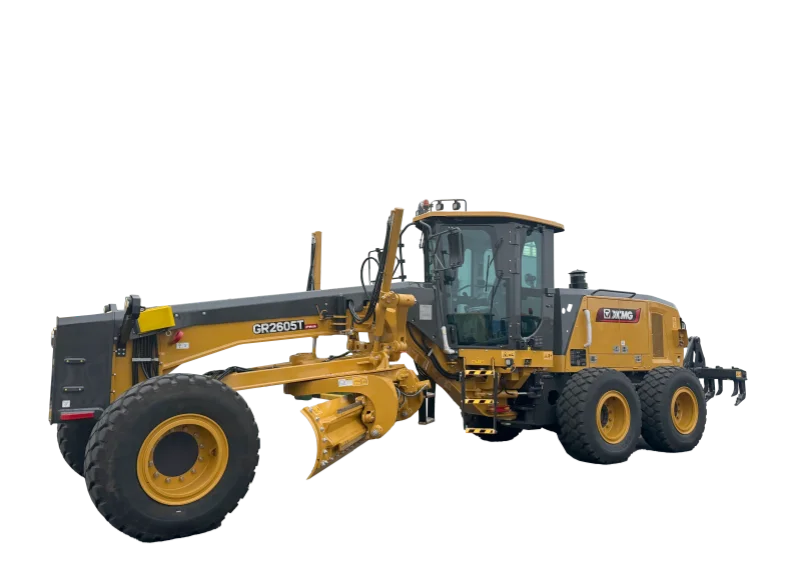

The XCMG GR2605T is a 19,000 kg, 194 kW motor grader in the XCMG 5 Series — sized for highway, airport, and farmland leveling, ditching, slope scraping, bulldozing, scarification, and large-area snow removal.
The GR2605T runs the Cummins QSB6.7 at 194 kW (the high-output tune of the same engine used on the lower 164 kW GR2205T and 178 kW GR2405T) — same parts pool, more output. 9,448 mm overall length, 3,965 mm × 610 mm moldboard (full 5 Series blade length, vs the shorter 3,660 mm on the GR2605AT Cummins and GR2605T Pro), 7.8 m minimum turning radius, 53 km/h top forward speed. Six forward gears (6/9/15/23/35/53 km/h), three reverse gears (6/16/37 km/h), traction force at least 99 kN (f=0.75), 25 percent maximum gradeability, EU Stage III emission. Specified for highway, airport, farmland, and large-area finishing. Suited for project work that needs the full 3,965 mm moldboard spread on a 19-ton-class chassis at 194 kW, with Cummins QSB6.7 parts pool overlap across the entire XCMG 5 Series T-variant lineup.
Five aspects of the GR2605T that fit it to spread-oriented 19-ton-class motor grader work: Cummins QSB6.7 platform at 194 kW, full-length blade, drivetrain, application range, and parts compatibility.
194 kW rated power from the Cummins QSB6.7 6.7-liter inline-six diesel — same engine platform as the 164 kW GR2205T and 178 kW GR2405T, tuned to the higher rating. Parts pool overlap across the entire XCMG 5 Series T-variant lineup. EU Stage III emission certified.
3,965 mm × 610 mm moldboard — the full 5 Series blade length, against 3,660 mm on the GR2605AT(Cummins), GR2605T Pro, and GR2405T Pro siblings. 8 percent wider spread per pass — choose GR2605T when project work favors maximum coverage over tighter precision pass control.
Six forward gears (6/9/15/23/35/53 km/h) cover slow blade-control passes through 53 km/h transit between sites — the highest top speed in the GR2605 group. Three reverse gears (6/16/37 km/h) cover the standard maintenance cycle. 7.8 m minimum turning radius, traction force at least 99 kN at f=0.75, 25 percent maximum gradeability.
Specified for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, and similar large-area surfaces. Application range covers national defense projects, urban and rural roads, building construction, water conservancy work, and farmland improvement.
Cummins QSB6.7 engine pool shared with GR2205T and GR2405T; 3,965 mm blade pool shared with the GR2205AT, GR2205T, and GR2405T. Lower inventory carrying cost for fleet operators running mixed XCMG grader rosters. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | QSB6.7 (Cummins) |
| Rated power | kW | 194 |
| Machine dimension (L×W×H) | mm | 9448 × 2800 × 3550 |
| Machine weight | kg | 19000 |
| Drive speed, forward | km/h | 6 / 9 / 15 / 23 / 35 / 53 |
| Drive speed, reverse | km/h | 6 / 16 / 37 |
| Traction force (f=0.75) | kN | ≥ 99 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.8 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage III |
