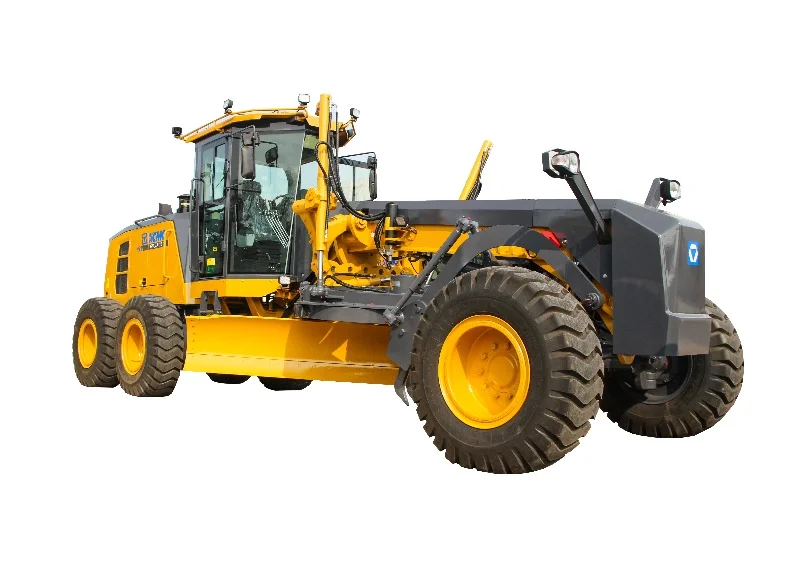

17 t XCMG 5 Series Motor Grader — Cummins QSB6.7 / 178 kW
17,000 kg, 178 kW motor grader in the XCMG 5 Series. Cummins QSB6.7 engine at 178 kW / 2,200 rpm, 9,343 mm overall length, 3,965 mm × 610 mm blade, 7.6 m minimum turning radius. Six forward gears with 40 km/h top speed, three reverse gears. Traction force at least 88 kN (f=0.75). 25 percent maximum gradeability, EU Stage III emission. Steps up from the 164 kW GR2205T sibling with 9 percent more power and 500 kg more operating weight on the same blade footprint and parts platform.
The XCMG GR2405T is a 17,000 kg, 178 kW motor grader in the XCMG 5 Series — sized for highway, airport, and farmland leveling, ditching, slope scraping, bulldozing, scarification, and large-area snow removal.
The GR2405T sits a step above the 16,500 kg / 164 kW GR2205T sibling: 9 percent more rated power (178 kW vs 164 kW), 3 percent higher traction (88 kN minimum vs 85 kN), 500 kg heavier operating weight. Same 3,965 mm × 610 mm moldboard, 7.6 m minimum turning radius, and Cummins QSB6.7 engine platform — parts pool overlaps with the GR2205T at lower fleet inventory cost. Six forward gears (5/8/11/18/25/40 km/h), three reverse gears (5/11/25 km/h), 25 percent maximum gradeability, EU Stage III emission. Specified for national defense projects, urban and rural roads, building and water conservancy construction, and farmland improvement. Suited for contractors stepping up from the 16-ton class when project mix calls for slightly more power and traction on the same blade footprint without moving to the 19-ton GR2605 tier.
Five aspects of the GR2405T that fit it to 17-ton-class motor grader work in the XCMG 5 Series: Cummins QSB6.7 powertrain at 178 kW, sibling positioning, blade configuration, application range, and parts compatibility.
178 kW / 2,200 rpm rated power from the Cummins QSB6.7 6.7-liter inline-six diesel. 9 percent more rated power than the 164 kW GR2205T sibling on the same Cummins engine platform — same service intervals, same parts pool, more output on the blade. EU Stage III emission certified.
17,000 kg operating weight, 178 kW power, 88 kN minimum traction force — a tier between the 16,500 kg / 164 kW GR2205T and the 19,000 kg / 194 kW GR2605T. Same 3,965 mm × 610 mm blade as the GR2205T (parts overlap), 7.6 m minimum turning radius. Fits project mixes that call for more output on the blade without stepping all the way to the 19-ton class.
Six forward gears (5/8/11/18/25/40 km/h) cover slow blade-control passes through 40 km/h transit; three reverse gears (5/11/25 km/h) cover the standard maintenance cycle. 25 percent maximum gradeability.
Specified for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, and similar large-area surfaces. Application range covers national defense projects, urban and rural roads, building construction, water conservancy work, and farmland improvement.
Blade, moldboard, ripper, hydraulic components, and consumables share core part numbers with other XCMG 5 Series motor graders (GR2205AT, GR2205T, GR2605T, GR2605T-Pro). Lower inventory carrying cost for fleet operators running mixed XCMG grader rosters. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | QSB6.7 (Cummins) |
| Rated power / speed | kW/rpm | 178 / 2200 |
| Machine dimension (L×W×H) | mm | 9343 × 2625 × 3432 |
| Machine weight | kg | 17000 |
| Drive speed, forward | km/h | 5 / 8 / 11 / 18 / 25 / 40 |
| Drive speed, reverse | km/h | 5 / 11 / 25 |
| Traction force (f=0.75) | kN | ≥ 88 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.6 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage III |
