16.5 t XCMG 5 Series Motor Grader — Cummins QSB6.7 / 164 kW
16,500 kg, 164 kW motor grader in the XCMG 5 Series. Cummins QSB6.7 engine at 164 kW / 2,200 rpm, 9,230 mm overall length, 3,965 mm × 610 mm blade, 7.6 m minimum turning radius. Six forward gears with 45 km/h top speed, three reverse gears. Traction force at least 85 kN (f=0.75). 25 percent maximum gradeability, EU Stage III emission. Choose the Cummins-engined GR2205T when the Cummins parts network is the local default; choose the GR2205AT sibling for the SC9 Shangchai variant at the same 164 kW rating.

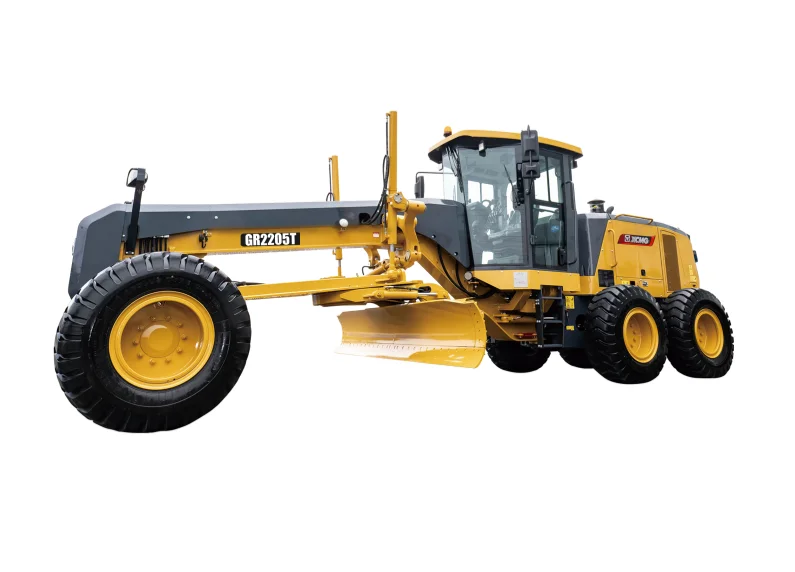

The XCMG GR2205T is a 16,500 kg, 164 kW motor grader in the XCMG 5 Series — built for highway, airport, and farmland leveling, ditching, slope scraping, bulldozing, scarification, and large-area snow removal.
The GR2205T sits at the entry of the 5 Series alongside the Shangchai-engined GR2205AT (same 164 kW rating). The GR2205T runs the Cummins QSB6.7 — choose it when the Cummins parts and service network is the local default. 9,230 mm overall length, 3,965 mm × 610 mm blade, 16,500 kg operating weight, 7.6 m minimum turning radius, 45 km/h top forward speed, traction force at least 85 kN (f=0.75). 25 percent maximum gradeability, EU Stage III emission. Specified for national defense projects, urban and rural roads, building and water conservancy construction, and farmland improvement. Suited for contractors needing a 16-ton-class grader with broad-area finishing reach where the Cummins engine fits the regional parts pool and the lower traction figure is enough for the substrate.
Five aspects of the GR2205T that fit it to 16-ton-class motor grader work in the XCMG 5 Series: Cummins QSB6.7 powertrain, blade configuration, drive range, application fit, and parts compatibility.
164 kW / 2,200 rpm rated power from the Cummins QSB6.7 6.7-liter inline-six diesel. Same 164 kW rating as the Shangchai-engined GR2205AT sibling — choose the T (Cummins) variant when Cummins is the regional service default. EU Stage III emission certified.
3,965 mm × 610 mm moldboard — the standard 5 Series blade length, sized to a 16,500 kg operating weight and 7.6 m minimum turning radius. Same blade as the GR2205AT and GR2405T siblings — moldboard, end bits, and cutting edges share part numbers across the 5 Series.
Six forward gears (5/9/12/20/25/45 km/h) cover slow blade-control passes through 45 km/h transit between sites; three reverse gears (5/12/25 km/h) cover the standard maintenance cycle. 25 percent maximum gradeability, traction force at least 85 kN at f=0.75.
Specified for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, and similar large-area surfaces. Application range covers national defense projects, urban and rural roads, building construction, water conservancy work, and farmland improvement.
Blade, moldboard, ripper, hydraulic components, and consumables share core part numbers with other XCMG 5 Series motor graders (GR2205AT, GR2405T, GR2605T, GR2605T-Pro). Lower inventory carrying cost for fleet operators running mixed XCMG grader rosters. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | QSB6.7 (Cummins) |
| Rated power / speed | kW/rpm | 164 / 2200 |
| Machine dimension (L×W×H) | mm | 9230 × 2625 × 3432 |
| Machine weight | kg | 16500 |
| Drive speed, forward | km/h | 5 / 9 / 12 / 20 / 25 / 45 |
| Drive speed, reverse | km/h | 5 / 12 / 25 |
| Traction force (f=0.75) | kN | ≥ 85 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.6 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage III |
