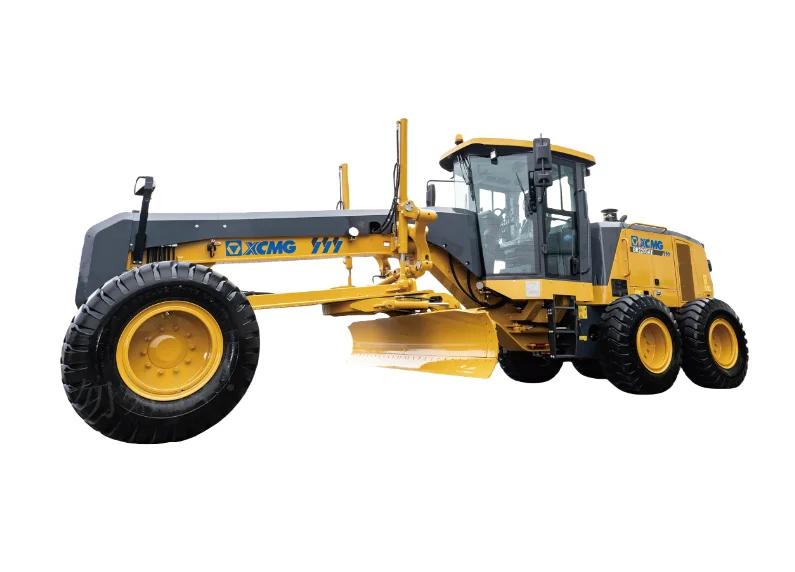

16.5 t XCMG 5 Series Motor Grader — SC9DK220G3 / 164 kW
16,500 kg, 164 kW motor grader in the XCMG 5 Series. SC9DK220G3 engine at 164 kW / 2,200 rpm, 9,343 mm overall length, 3,965 mm × 610 mm blade, 7.6 m minimum turning radius. Six forward gears with 45 km/h top speed. Traction force at least 111 kN (f=0.75) — higher than the Cummins-engined GR2205T sibling at the same power rating. 25 percent maximum gradeability, EU Stage III emission. Choose the AT variant when the Shangchai SC9 parts network fits the territory better than Cummins QSB6.7.
The XCMG GR2205AT is a 16,500 kg, 164 kW motor grader in the XCMG 5 Series — sized for highway, airport, and farmland leveling, ditching, slope scraping, bulldozing, scarification, and large-area snow removal.
The GR2205AT sits at the entry of the 5 Series alongside the Cummins-engined GR2205T (same 164 kW rating). The GR2205AT runs the SC9DK220G3 engine at 164 kW / 2,200 rpm — choose it when the SC9 Shangchai parts network fits the territory better than Cummins QSB6.7. 9,343 mm overall length, 3,965 mm × 610 mm blade, 16,500 kg operating weight, 7.6 m minimum turning radius, 45 km/h top forward speed, traction force at least 111 kN (f=0.75) — meaningfully higher than the GR2205T's 85 kN at the same power rating. 25 percent maximum gradeability. EU Stage III emission. Specified for national defense projects, urban and rural roads, building and water conservancy construction, and farmland improvement. Suited for contractors needing a 16-ton-class grader with a mid-length 3,965 mm blade and broad-area finishing range, where the higher traction figure matters for harder substrates and the SC9 engine fits the local parts pool.
Five aspects of the GR2205AT that fit it to 16-ton-class motor grader work in the XCMG 5 Series: SC9 powertrain choice, traction force advantage, blade configuration, application range, and parts compatibility.
164 kW / 2,200 rpm rated power from the Shangchai SC9DK220G3 inline-six diesel. Same 164 kW rating as the Cummins-engined GR2205T sibling — choose the AT (Shangchai) variant when local parts and service network coverage favors SC9 over Cummins QSB6.7. EU Stage III emission certified.
Traction force at least 111 kN at f=0.75, against 85 kN minimum on the Cummins-engined GR2205T at the same 164 kW power rating. The higher traction figure matters for harder substrates, scarification of compacted material, and slope scraping where wheel slip limits productive blade load.
3,965 mm × 610 mm moldboard — the standard 5 Series blade length, sized to a 16,500 kg operating weight and 7.6 m minimum turning radius. Six forward gears (5/9/12/20/25/45 km/h) cover slow blade-control passes through 45 km/h transit between sites; three reverse gears (5/12/25 km/h) cover the typical maintenance cycle.
Specified for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, and similar large-area surfaces. Application range covers national defense projects, urban and rural roads, building construction, water conservancy work, and farmland improvement — broad enough for contractors with mixed project portfolios.
Blade, moldboard, ripper attachments, hydraulic components, and consumables share core part numbers with other XCMG 5 Series motor graders (GR2205T, GR2405T, GR2605T, GR2605T-Pro). Lower inventory carrying cost for fleet operators running mixed XCMG grader rosters. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | SC9DK220G3 (Shangchai) |
| Rated power / speed | kW/rpm | 164 / 2200 |
| Machine dimension (L×W×H) | mm | 9343 × 2465 × 3432 |
| Machine weight | kg | 16500 |
| Drive speed, forward | km/h | 5 / 9 / 12 / 20 / 25 / 45 |
| Drive speed, reverse | km/h | 5 / 12 / 25 |
| Traction force (f=0.75) | kN | ≥ 111 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.6 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage III |
