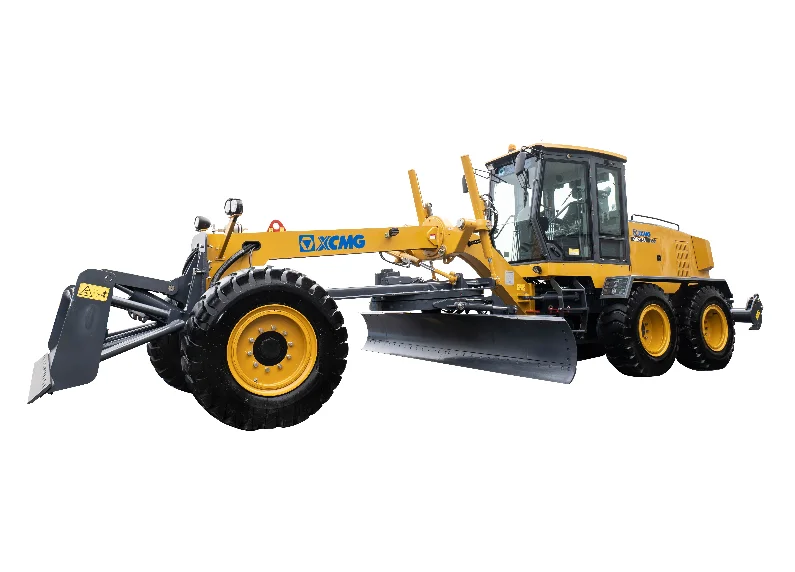

16.1 Ton XCMG Heavy-Duty D-Series Motor Grader — Cummins 6CTA8.3 160 kW
16.1-ton heavy-duty D-Series motor grader and the heavy-duty variant of the GR215. Cummins 6CTA8.3-C215 main engine, 160 kW at 2,200 rpm (about 215 HP), EU Stage II emission. 4,270 x 610 mm blade — widest in the D-Series and 8 percent wider than the GR215's 3,965 mm blade. Traction force at f=0.75 at least 118 kN (39 percent higher than GR215's 85 kN). Maximum gradeability at least 30 percent (versus 25 percent on GR215). Minimum turning radius 7.3 m. Dimensions 9,180 x 2,625 x 3,420 mm.
The GR215A is a 16.1-ton D-Series motor grader and the heavy-duty variant of the GR215. Sized for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, urban and rural roads, water conservancy projects, and farmland improvement work. Also rated for heavy-duty and mining areas. The Cummins 6CTA8.3-C215 main engine delivers 160 kW at 2,200 rpm (about 215 HP) with EU Stage II emission compliance. The 4,270 x 610 mm blade is 8 percent wider than the GR215's 3,965 mm blade and 17 percent wider than the 3,660 mm blade on the GR135, GR165, and GR180. Traction force at f=0.75 is at least 118 kN (39 percent higher than the GR215's 85 kN). Maximum gradeability is at least 30 percent (versus 25 percent on the GR215). Six forward gears top out at 38 km/h with three reverse gears, minimum turning radius 7.3 m. Dimensions are 9,180 x 2,625 x 3,420 mm. Choose GR215A when the project demands higher traction and gradeability than the GR215 — e.g., heavier mining haul roads or steeper grade work.
Five aspects of the GR215A that fit it to heavy-duty D-Series motor grader work: 4,270 mm widest D-Series blade, 118 kN higher traction, 30% gradeability, sibling positioning vs the standard GR215, and parts compatibility across the XCMG grader range.
4,270 x 610 mm blade is the widest in the D-Series — 8 percent wider than the GR215 (3,965 mm) and 17 percent wider than GR135, GR165, and GR180 (3,660 mm). Reduces pass count on long mining haul-road work and grade-intensive infrastructure jobs. Only the mining-class GR3005T Pro (4,572 mm) goes wider in the XCMG range.
Traction force at f=0.75 at least 118 kN, versus 85 kN on the standard GR215 (39 percent higher) and 140 kN on the mining-class GR3005T Pro. Sized for heavy grading work where the standard D-Series runs out of pulling capacity but the full mining-class chassis is not justified.
Maximum gradeability at least 30 percent, versus 25 percent on the standard D-Series (GR135, GR165, GR180, GR215). Same headroom as the mining-class GR3005T Pro. Suited to steeper grade work, mine site ramp maintenance, and projects where the standard D-Series runs at the gradeability limit.
Same Cummins 6CTA8.3-C215 engine and 160 kW rating as the standard GR215. GR215A adds 305 mm overall length (9,180 vs 8,970 mm) for the wider blade, higher traction (118 vs 85 kN), and higher gradeability (30 vs 25 percent). Slightly lighter chassis (16.1 vs 16.5 t). Choose GR215A when grading duty includes mining haul roads, steeper grades, or projects benefiting from the 4,270 mm blade.
Blade components, hydraulic fittings, cab parts, and articulated chassis components share core part numbers with the rest of the D-Series (GR135, GR165, GR180, GR215), 5-Series (GR2605AT), mining-class (GR3005T Pro), and 3-Series (GR1003, GR2403) XCMG graders. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Cummins 6CTA8.3-C215 |
| Rated power / speed | kW/rpm | 160 / 2200 |
| Machine dimension (L×W×H) | mm | 9180 × 2625 × 3420 |
| Machine weight | kg | 16100 |
| Drive speed, forward | km/h | 5, 8, 11, 19, 23, 38 |
| Drive speed, reverse | km/h | 5, 11, 23 |
| Traction force (f=0.75) | kN | ≥ 118 |
| Maximum gradeability | % | ≥ 30 |
| Minimum turning radius | m | 7.3 |
| Blade length × height | mm | 4270 × 610 |
| Emission standard | - | EU Stage II |
