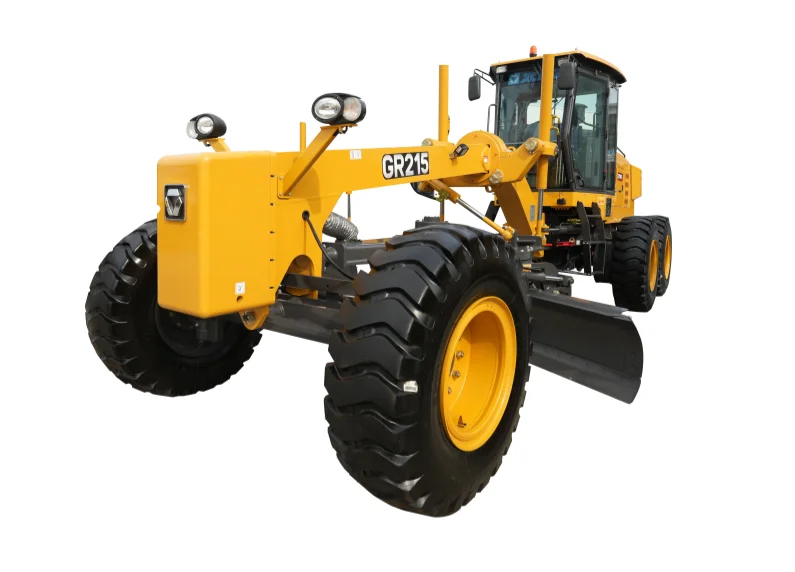

16.5 Ton XCMG D-Series Motor Grader — Cummins 6CTA8.3 160 kW
16.5-ton D-Series motor grader. Cummins 6CTA8.3-C215 main engine, 160 kW at 2,200 rpm (about 215 HP), EU Stage II emission. 3,965 x 610 mm blade — 8 percent wider than the GR135, GR165, and GR180 standard 3,660 mm blade. Traction force at f=0.75 at least 85 kN, maximum gradeability at least 25 percent, minimum turning radius 7.3 m. Six forward gears (5, 8, 11, 19, 23, 38 km/h) and three reverse gears (5, 11, 23 km/h). Dimensions 8,970 x 2,625 x 3,420 mm. Heaviest standard D-Series; GR215A heavy-duty variant adds traction to 118 kN and a 4,270 mm blade.
The GR215 is a 16.5-ton D-Series motor grader sized for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal on highways, airports, farmlands, urban and rural roads, water conservancy projects, and farmland improvement work. Also rated for heavy-duty and mining areas. The Cummins 6CTA8.3-C215 main engine delivers 160 kW at 2,200 rpm (about 215 HP) with EU Stage II emission compliance. The 3,965 x 610 mm blade is 8 percent wider than the GR135, GR165, and GR180 standard 3,660 mm blade. Six forward gears top out at 38 km/h with three reverse gears, traction force at f=0.75 is at least 85 kN, maximum gradeability at least 25 percent, minimum turning radius 7.3 m. Dimensions are 8,970 x 2,625 x 3,420 mm. The widest blade and highest traction in the standard D-Series. Choose GR215 over the GR180 when the project benefits from fewer passes per shift on long grading runs. The GR215A sibling adds traction force to 118 kN and a 4,270 mm blade for heavy-duty work.
Five aspects of the GR215 that fit it to heavy standard D-Series motor grader work: 3,965 mm wider blade, Cummins 6CTA8.3 215 HP rating, mining-capable application range, sibling positioning vs GR180 and GR215A, and parts compatibility across the XCMG grader range.
3,965 x 610 mm blade is 8 percent wider than the 3,660 mm blade on GR135, GR165, and GR180. On long straight grading runs (highway base, airport, mining haul road), the wider cut reduces pass count per shift. The GR215A heavy-duty variant goes wider still at 4,270 mm.
Cummins 6CTA8.3-C215 main engine, 160 kW at 2,200 rpm (about 215 HP), EU Stage II emission. 13 percent more power than the GR180's 142 kW from the same 8.3-liter C-Series Cummins platform. Sized for sustained heavy-duty grading cycles where the GR180 runs out of headroom but the heavy-duty GR215A traction envelope is not needed.
Specified for highway, airport, farmland, urban and rural road, water conservancy, farmland improvement, and snow removal work. Also rated for heavy-duty and mining areas. Suitable for sites where light-to-medium mining haul-road maintenance overlaps with general road construction in the same fleet.
Versus GR180 (15.4 t, 142 kW, 3,660 mm blade): GR215 adds the wider blade and 18 kW more power. Versus GR215A (16.1 t, 160 kW, 4,270 mm blade, 118 kN traction): GR215A keeps the same engine but adds 39 percent traction (118 vs 85 kN) and 30 percent gradeability — choose GR215A when grade and traction headroom are binding, GR215 when the 3,965 mm blade and 85 kN traction match the duty cycle.
Blade components, hydraulic fittings, cab parts, and articulated chassis components share core part numbers with the rest of the D-Series (GR135, GR165, GR180, GR215A), 5-Series (GR2605AT), mining-class (GR3005T Pro), and 3-Series (GR1003, GR2403) XCMG graders. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine model | - | Cummins 6CTA8.3-C215 |
| Rated power / speed | kW/rpm | 160 / 2200 |
| Machine dimension (L×W×H) | mm | 8970 × 2625 × 3420 |
| Machine weight | kg | 16500 |
| Drive speed, forward | km/h | 5, 8, 11, 19, 23, 38 |
| Drive speed, reverse | km/h | 5, 11, 23 |
| Traction force (f=0.75) | kN | ≥ 85 |
| Maximum gradeability | % | ≥ 25 |
| Minimum turning radius | m | 7.3 |
| Blade length × height | mm | 3965 × 610 |
| Emission standard | - | EU Stage II |
