15,000 kg mobile stockpile conveyor with 450 t/h max disposal capacity and 8.7 m discharge height. Replaces the loader-and-truck shuttle that otherwise carries product between crushers, screens, and stockpiles on a mobile crushing pad — removes noise, dust, and exhaust emissions from frequent dumping operations. Working dimensions 19,564 × 2,455 × 9,261 mm. Travel speed 1 km/h, 12° max gradeability. Tanks: 200 L fuel, 300 L hydraulic oil. Runs alongside crushers and screens in a continuous-flow joint production line, or as a standalone stacker for aggregate, construction-waste recycling, and mine-spoil dumping.

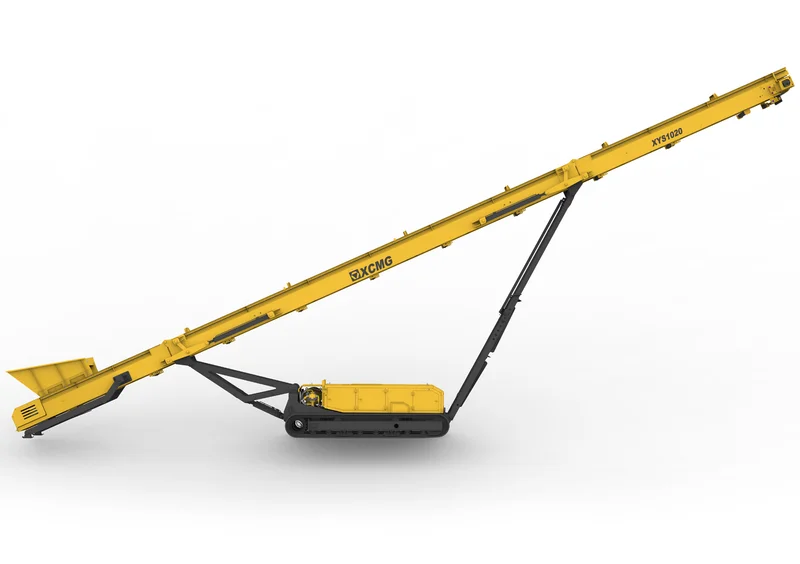

XYS1020 is a 15,000 kg mobile stockpile conveyor with 450 t/h max disposal capacity and 8.7 m discharge height. The unit's role in a crushing line is to receive product from upstream crushing or screening, transport it across the pad, and stack it into a discharge pile — replacing the loader-and-truck shuttle that otherwise carries product between the crusher and the stockpile.
Working dimensions are 19,564 × 2,455 × 9,261 mm with the boom raised. Travel speed is 1 km/h with 12° max grade ability. Fuel tank capacity is 200 L and hydraulic oil tank is 300 L. The unit runs alongside primary crushing, secondary crushing, and screening stations, or as a standalone aggregate, construction-waste, or mine-spoil stacker.
Replacing the loader-and-truck shuttle removes noise, dust, and exhaust emissions associated with frequent dumping operations on the pad. Continuous conveyor flow also raises the productivity of upstream crushing and screening equipment by removing the bottleneck of waiting for truck cycles. The conveyor can run individually for transport-and-stack duty or be linked in series with crushers and screens to build a continuous-flow joint production line on a single mobile platform layout — typical for short-campaign aggregate sites and recycling pads.
